IMS-7-1

Available upon request

Motorized Iris Diaphragm - $1,195.00

Special motorized and electronics

Mass:  200 grams

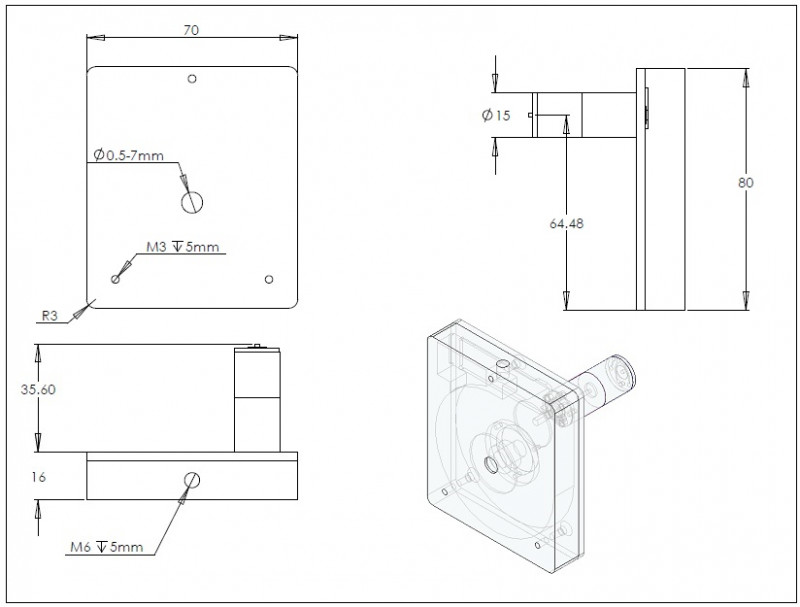

Dimensions:  80 x 70 x 20mm
DATASHEET IMS-7-1_DS.pdf

Images


Description

The Motorized Optical Iris Diaphragm is a mechanical device used to control the amount of transmitted light through an adjustable aperture.

The shape of the circular optical aperture is not perfect circular because it is achieved using a number of thin and smooth curved blades or leaves.

These blades are attached at one end to a ring which when rotated changes the diameter of the rezulting aperture.

Zero Aperture or fully closable iris diaphragms are a special category. They consist of 2 parallel planes of blades which can fully obstruct the light.

Regular irises do not fully close but can achieve up to a minimum aperture of 0.5 mm diameter.

Applications for Motorized irises include cameras, microscopes and other scientific instruments or apparatus where it limits the amount of light reaching a specimen, a sensor or photo-detector.

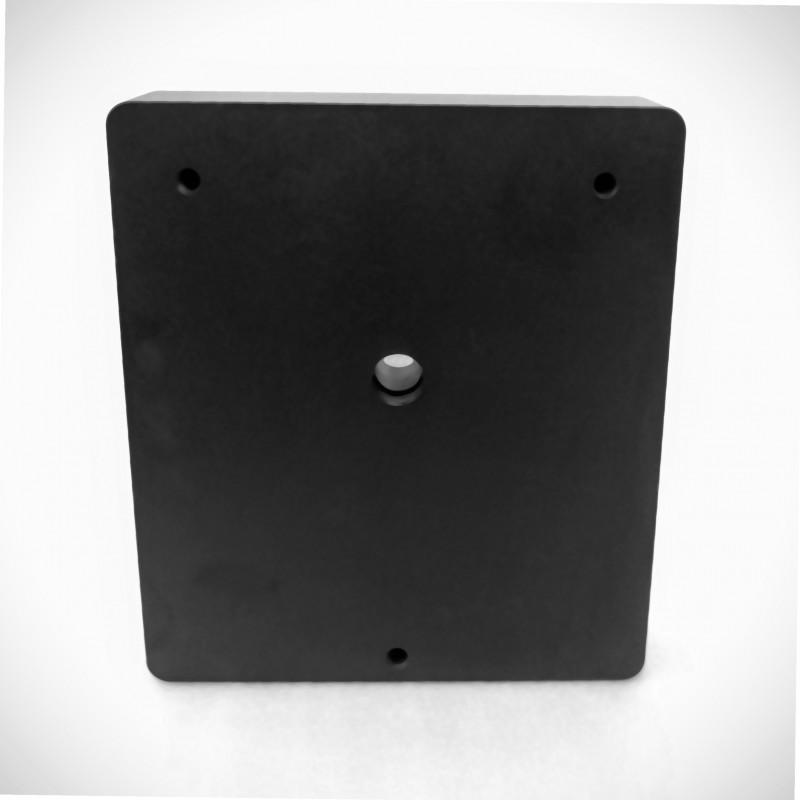

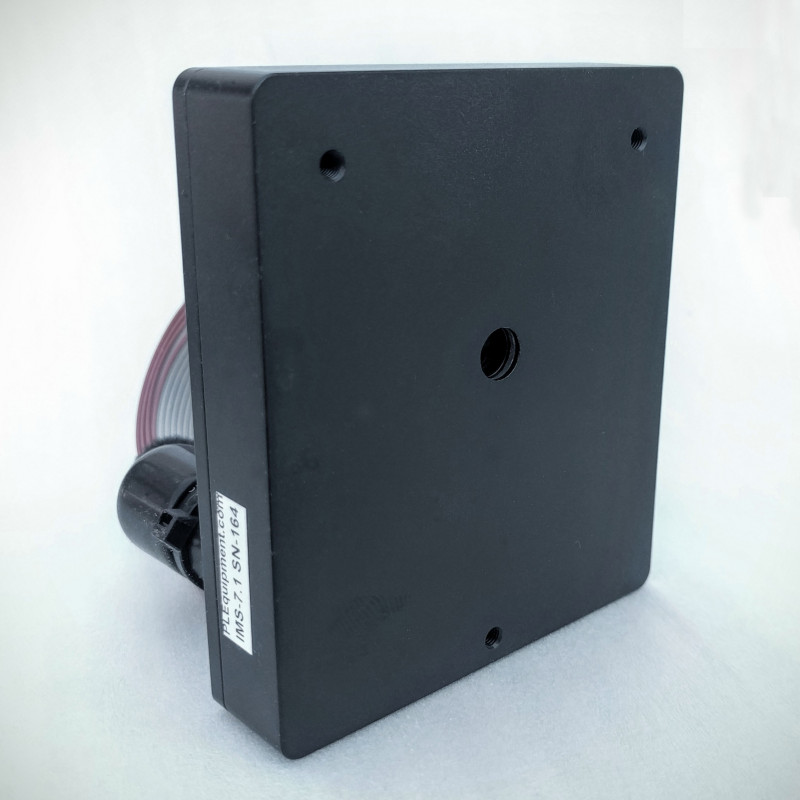

The IMS-7-1 motorized optical iris diaphragm allows continuous and smooth adjustment of the circular aperture from a computer or another electronic programmable machine.



- Motorized Iris Diaphragm
- Fully closable
- Aperture diameter 0.5-7mm
- One set of blades
- Stepper or DC Geared Servomotor
- Up to 23000 increments for full open-close operation
- Motor current max. 0.17A
- Motor voltage max. 12V
- Opening time 0.2 to 30 sec.

Similar products                         Related products
      IMS-37A                                        SSP-21
      IMS-25A                                       USS-210
                                                                   DSP-21
