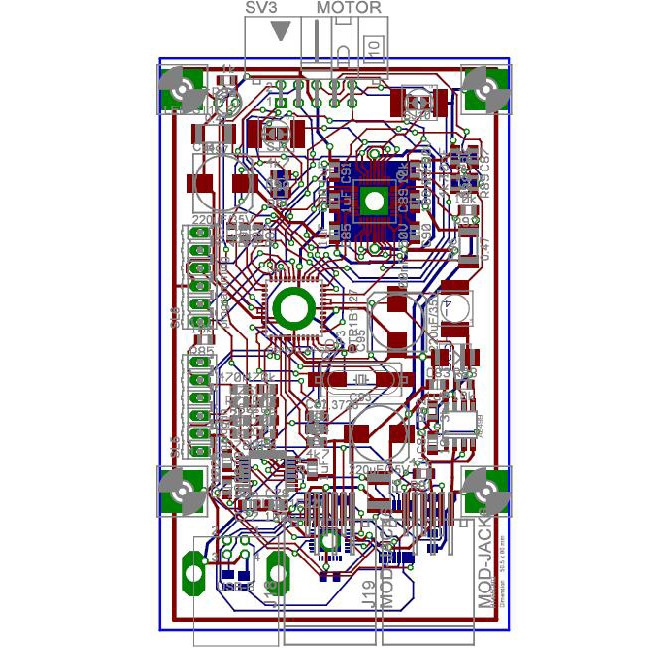

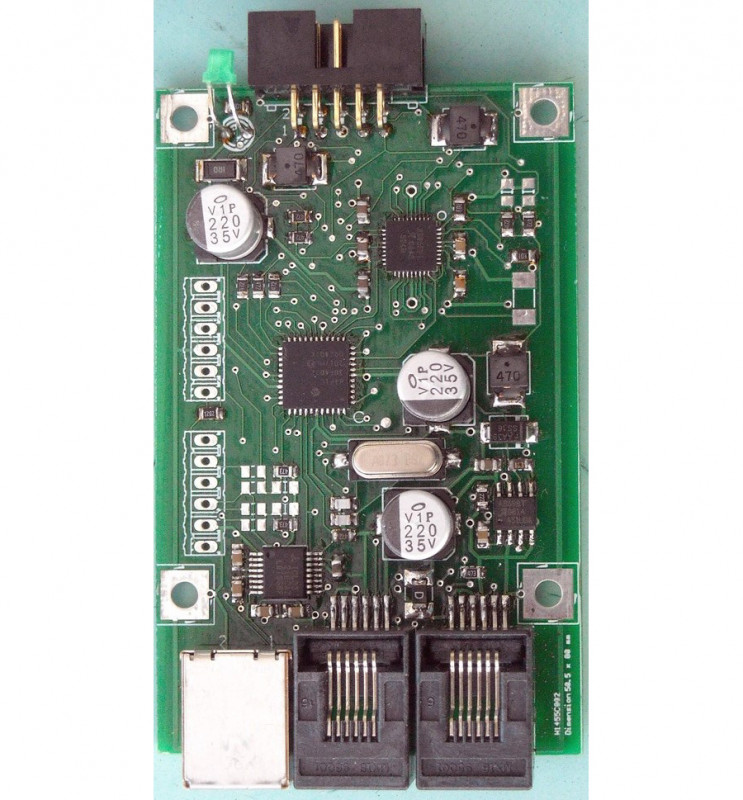

DSP-21 Motor Controller RoHs

Available upon request

Miniature DC Servo Motor Controller and driver

Special motorized and electronics

Mass:  150 grams
Dimensions:  2 x 3 inch
DATASHEET DSP-21DS1.pdf

Images


Description

One axis DC Motor Controller. RoHs compliant.
Encoder feedback option available with absolute position.
The PC Interface can be RS232, USB or wireless.
Up to 6 boards may share same PC host interface.
2 ch general purpose 10-bit A/D input port for reading 0 to 5V.
Home reference switch with indexing for repeatable positioning.
End of travel switches.
Digital and Analog I/Os.
Programmable limit switches.
No programming needed. DEMO software and LabView drivers.
Manual and PC control via RS-232, USB or wireless.
Low price for OEM.
Can be used as replacement for ThorLabs, Newport and Optosigma controllers.

Files

File NameSize
DSP-21DS1.pdf621.37KB
DSP-21UM.pdf663.06KB
FirstOperation.pdf107.43KB
LabView_32bit_DEMO.zip173.75KB
QuickStart.pdf440.69KB
USB_DRIVER_WIN.zip3.71MB
