RSC-51E

Available In Stock

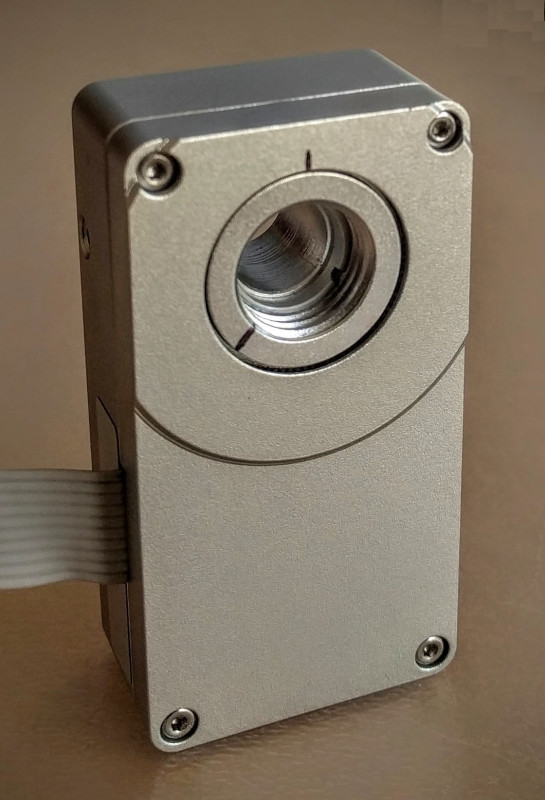

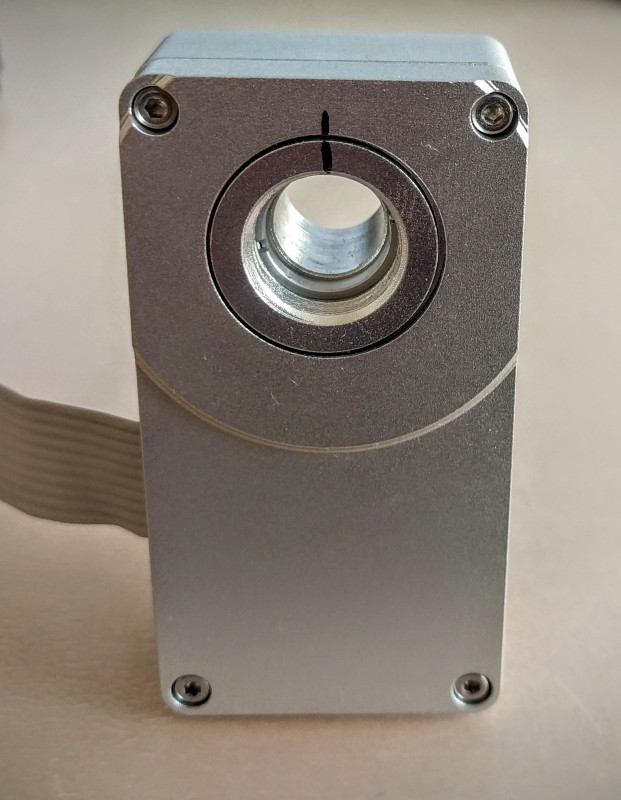

Miniature motorized polarization rotator with 1/2" open aperture

Special motorized and electronics

Mass:  50 grams

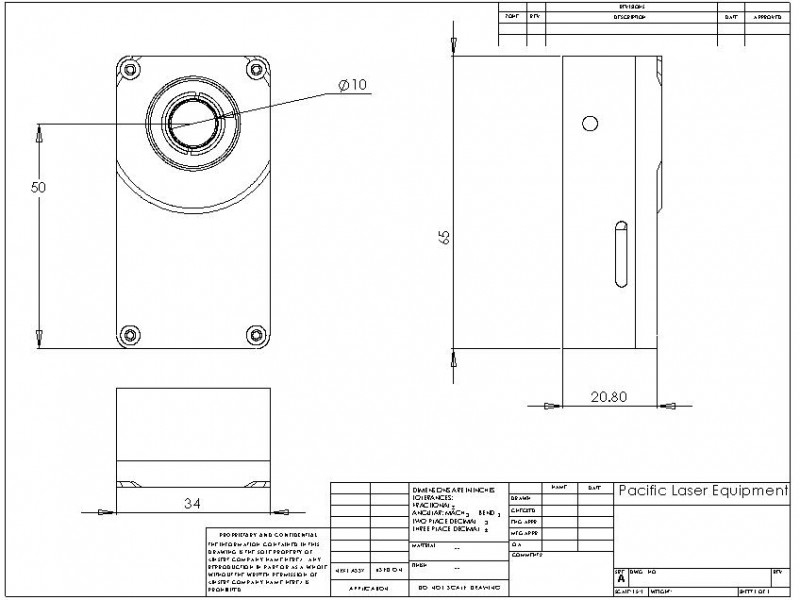

Dimensions:  65 x 34 x 20 mm
DATASHEET RSC-51E_DS.pdf

Images


Description

A polarization rotator or a waveplate rotator is a mechanical device that rotates a polarizer filter or an optical wave plate.

The optical polarizer acts like a filter that allows transmittance of linearly polarized light only along its polarization axis and reduces the intensity of transmitted light according to

.

The optical waveplate shifts the polarization of linearly polarized light with little or no loss of intensity.

Motorized polarization rotators or wave plate rotators are commonly used in applications involving optics and lasers.

The RSC-51E motorized rotator allows very precise, continuous and smooth adjustment of the rotation angle from a computer or another electronic programmable machine.

- Miniature rotational stage
- 1/2" clear aperture
- 360deg continuous rotation
- 2040 steps per rotation
- Up to 300 rpm
- Ultrasonic piezo driven
- Optics is held with a ring with thread 1.035-40
- Optics thickness up to 7mm
- Reference Hall effect switch
- Optical Encoder feedback from the moving platform

Similar products                         Related products
      RSC-103E                                        SSP-21
      RSC-104E                                        USS-210
      RSC-116E



- Miniature rotational stage

- 360deg continuous rotation



- Option: Encoder feedback from the moving platform
