Max. travel range: 200 degrees. Input signal range: 0 to 5V Built-in resistive absolute encoder. Resolution: Not specified. Minimum increment: ~ 2.5deg Linearity: Not specified. Max. torque: 0.01lbf-inch Gearhead: Yes Cannot be overdriven. Recommended controller: UDA-210 Optics not included.

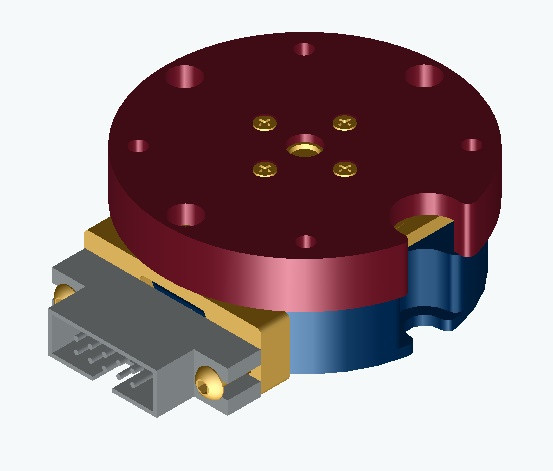

Miniature rotational stage. Height 25mm Diameter 55mm Continuous rotation +360degrees Home reference switch Closed loop operation. Resolution: 0.0173 degrees (0.1arcmin) OEM versions available. Recommended controller SSP-21

<div> <p>A polarization rotator or a waveplate rotator is a mechanical device that rotates a polarizer filter or an optical wave plate.</p> <p>The <a href="https://www.edmundoptics.com/resources/application-notes/optics/polarizer-selection-guide/">motorized optical polarization rotator</a> acts like a filter that allows transmittance of linearly polarized light only along its polarization axis and reduces the intensity of transmitted light according to</p> <p><a title="Malus" href="https://youtu.be/utY72MD-Ii4">Malus's law</a>.</p> <p>The <a href="https://www.edmundoptics.com/resources/application-notes/optics/understanding-waveplates/">optical waveplate</a> shifts the polarization of linearly polarized light with little or no loss of intensity.</p> <p>Motorized polarization rotators or wave plate rotators are commonly used in applications involving optics and lasers.</p> <p>The <strong>RSC-101A</strong> motorized rotator allows very precise, continuous and smooth adjustment of the rotation angle from a computer or another electronic programmable machine.</p> <p> <strong>   <a href="https://www.youtube.com/watch?v=yglNRNCxpk4">YouTube VIDEO here</a></strong></p> </div> <div>   <strong> <a title="2&quot; Motorized Rotator - RSC-201A" href="https://youtu.be/OcKoC7pzQQE">YouTube VIDEO here</a></strong> </div> <div>- Miniature rotational stage</div> <div>- 1" clear aperture. 1/2" and 2" version also available.</div> <div>- 360deg continuous rotation</div> <div>- Up to 400000 steps per rotation</div> <div>- Up to 10 rpm</div> <div>- Stepper or DC Servo driven</div> <div>- Optics is held with a ring with thread 1.035-40</div> <div>- Optics thickness up to 7mm</div> <div>- Reference Hall effect switch</div> <div>- Option: Encoder feedback from the moving platform</div> <div> </div> <div><strong>Similar products                         Related products </strong>     </div> <div>      <a href="/products/RSC-103E-compact-motorized-rotator">RSC-103E</a>                                      <a href="/products/Stepper-Servo-Motor-Controller-SSP-21-RoHs"> SSP-21</a></div> <div>      RSC-104E                                       <a title="USS-210 Controller" href="/products/uss-210-usb-stick-stepper-controller-motor-driver">USS-210</a></div> <div>      RSC-116E</div>

The angular adjustment stage WV 100 is suitable for combined coarse adjustment and high-resolution fine adjustment. Its aperture allows transmitting components to be rotated around the optical axis. Other rotational axes, including multi-dimensional configurations, can also be realized using the accessories. ' coarse and fine adjustment ' with fine-thread screw or micrometer ' for vertical and horizontal use ' deformation-resistant aluminum, black anodized
