RSC-101A
A polarization rotator or a waveplate rotator is a mechanical device that rotates a polarizer filter or an optical wave plate.
The motorized optical polarization rotator acts like a filter that allows transmittance of linearly polarized light only along its polarization axis and reduces the intensity of transmitted light according to
The optical waveplate shifts the polarization of linearly polarized light with little or no loss of intensity.
Motorized polarization rotators or wave plate rotators are commonly used in applications involving optics and lasers.

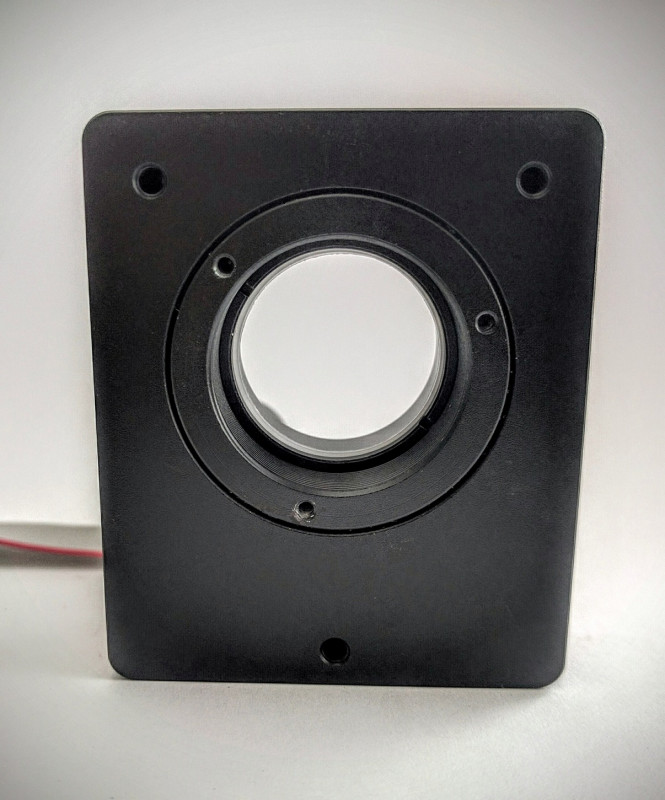

The RSC-101A motorized rotator allows very precise, continuous and smooth adjustment of the rotation angle from a computer or another electronic programmable machine.
- Miniature rotational stage
- 1" clear aperture. 1/2" and 2" version also available.
- 360deg continuous rotation
- Up to 400000 steps per rotation
- Up to 10 rpm
- Stepper or DC Servo driven

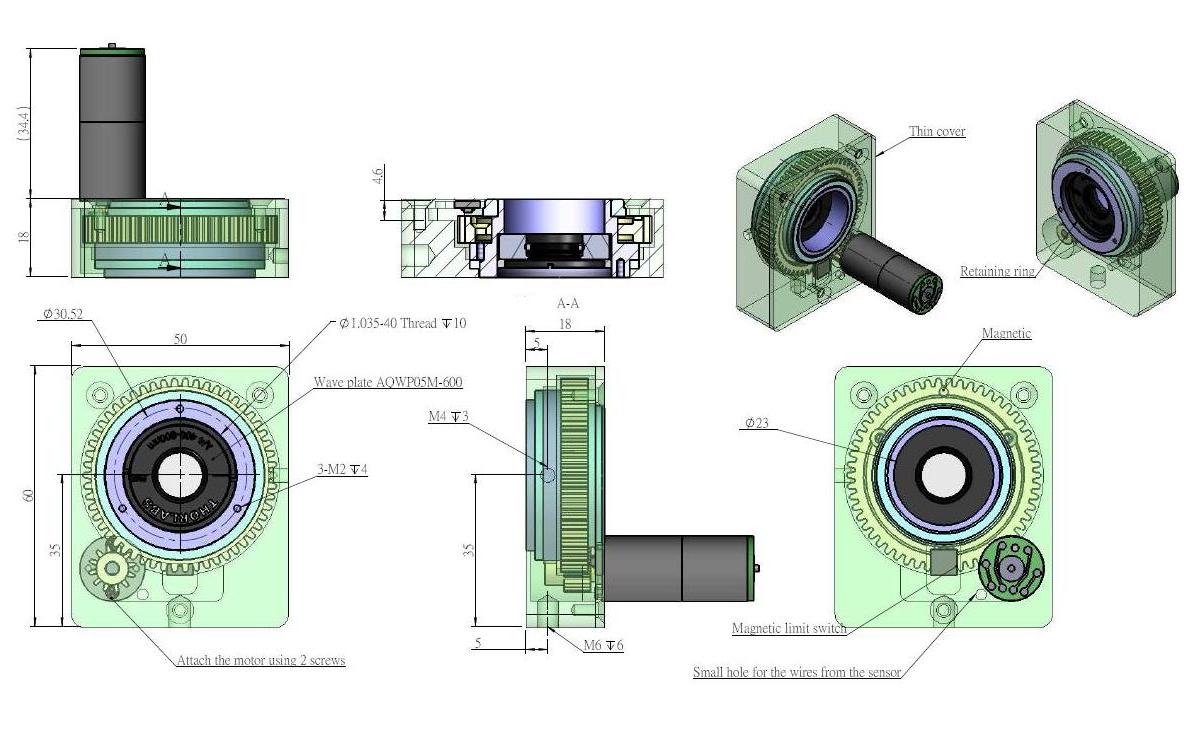

- Optics is held with a ring with thread 1.035-40
- Optics thickness up to 7mm
- Reference Hall effect switch
- Option: Encoder feedback from the moving platform
