PE-1004
Available upon request

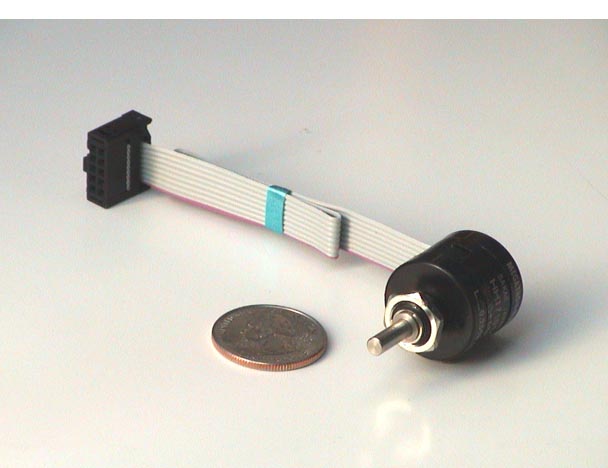

Miniature non-contact magnetic encoder. OEM version available.
Special motorized and electronics
Mass: 25 grams
Dimensions: 20mm
DATASHEET: PE-1004.pdf
Images
Description
Digital resolution: 10bit (1024 pulses per revolution).
Absolute PWM output: available.
Index channel: Yes
Incremental ouputs: ch A + ch B
No contact with moving part.
Powered directly from the controller.
Absolute PWM output: available.
Index channel: Yes
Incremental ouputs: ch A + ch B
No contact with moving part.
Powered directly from the controller.
Files
| File Name | Size | |
|---|---|---|
 | PE-1004.pdf | 152.7KB |
