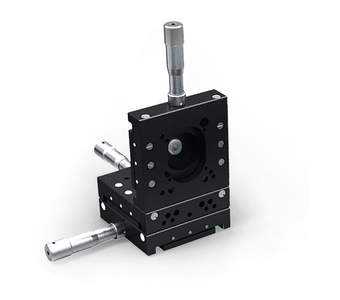

XYZ fibre positioner FAPO 50
OWIS Fine opto-mechanics
External URL: owis.eu
DATASHEET: pi_fapo_50.pdf
Description
The XYZ fibre positioners enable positioning fibres with nanometre precision in X, Y and Z. The used micrometres possess a spindle pitch of 0.10 mm/rev. By using these micrometres a setting sensitivity down to 20 nm is reachable.
The FAPO 50 is equipped with SMA or with FC adapter. They are very compact and can easily integrated in setups.
- very sensitive adjustment of X, Y and Z
- micrometers MS 10
- SMA or FC compact desig
Option
- vacuum-prepared versions available
| Art. Nbr. | Type | Title |
|---|---|---|
| 31.511.0001 | FAPO 50-MS10-SMA | XYZ fibre positioner with micrometers and SMA Adapter |
| 31.511.0002 | FAPO 50-MS10-FC | XYZ fibre positioner with micrometers and FC Adapter |
| 33.900.0040 | MP-WV40-MKT40 | mounting plates WV 40/MKT 40 (40 x 40 x 10 mm) for mounting an WV 40 angular adjustment stage on the MKT 40 miniature XY stage, 40 x 40 x 10 mm |
