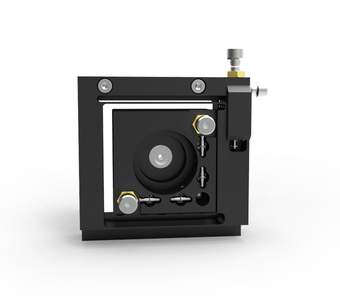

XYθφ fibre positioner FAPO 65
OWIS Fine opto-mechanics
External URL: owis.eu
DATASHEET: pi_fapo_65.pdf
Description
The XYθφ fibre positioners enable positioning fibres with nanometre precision in X, Y, θ and φ. The variant with fine-thread screws FGS 15 has a pitch of 0.15 mm/rev., the one with micrometres even 0.10 mm/rev. By using these micrometres a setting sensiti-vity down to 20 nm is reachable.
The FAPO 65 is equipped with SMA or with FC adapter. They are for use with SYS 65 and can easily integrated in Setups.
- for use with SYS 65
- very sensitive adjustment of X, Y, θ and φ
- fine-thread screws FGS 15 or micrometers MS 10
- SMA or FC • compact design
- ways of installing
- for use with slide RT 65
- on pins STF 15
Option
- vacuum-prepared versions available
| Art. Nbr. | Type | Title |
|---|---|---|
| 16.511.0101 | FAPO 65-FGS-SMA | XY fibre positioner with fine-thread screws and SMA adapter |
| 16.511.0102 | FAPO 65-FGS-FC | XY fibre positioner with fine-thread screws and FC adapter |
| 16.511.0201 | FAPO 65-MS-SMA | XY fibre positioner with micrometers and SMA adapter |
| 16.511.0202 | FAPO 65-MS-FC | XY fibre positioner with micrometers and FC adapter |
| 16.021.0020 | RT 65-20-R | slide SYS 65, 20 mm, with knurled screw |
| 16.022.0020 | RT 65-20-M4 | slide RT 65, 20 mm, with hexagon socket head cap screw ISO 4762 |
