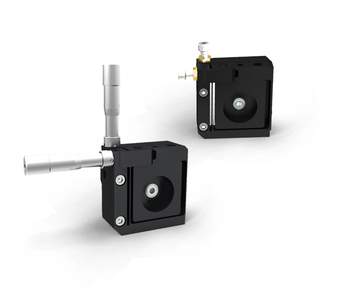

XY fibre positioner FAPO 40

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_fapo_40.pdf

Description

The XY fibre positioners enable positioning fibres with nanometre precision in X and Y. The variant with fine-thread screws FGS 15 has a pitch of 0.15 mm/rev., the one with micrometres even 0.10 mm/rev. By using these micrometres a setting sensitivity down to 20 nm is reachable.

The FAPO 40 is equipped with SMA or with FC adapter. They are for use with SYS 40 and can easily integrated in Setups.

  • for use with SYS 40
  • very sensitive adjustment of X and Y
  • fine-thread screws FGS 15 or micrometers MS 10
  • SMA or FC
  • compact design
  • ways of installing
    – for use with slide RT 40

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
14.511.0101 FAPO 40-FGS15-SMA

XY fibre positioner with fine-thread screws and SMA adapter

14.511.0102 FAPO 40-FGS15-FC

XY fibre positioner with fine-thread screws and FC adapter

14.511.0201 FAPO 40-MS10-SMA

XY fibre positioner with micrometers and SMA adapter

14.511.0202 FAPO 40-MS10-FC

XY fibre positioner with micrometers and FC adapter

14.021.0020 RT 40-20-R

slide SYS 40, 20 mm, with knurled screw

14.022.0010 RT 40-10-M3

slide SYS 40, 10 mm, with hexagon socket head cap screw
