XY Stages KT 90

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_kt_90.pdf

Description

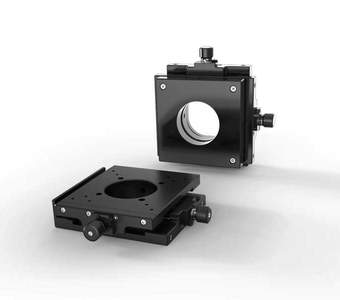

The KT 90 XY stages have a high-precision double-dovetail guide.

They are XY adjusting devices for large beam diameters - its aperture is retained even in extreme positions - and are available with wobble plates with various holding diameters.

Fixing the position with three screws with disc springs provides fine tilting motion with great long-term stability and vibration-proof construction.

Using the mounting plate, the height of the optical axis is 65 mm (including rail S 90 LL and slide RT 90 the height of the optical axis is 105 mm).

  • for use with SYS 90
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with clamping
  • with fine-thread spindles
  • high load capacity
  • ways of installing:
    – on slide
    – on pin

Options
- wobble plate with another Diameter
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
19.392.1320 KT 90-D56-MP

XY stages KT 90, with fine-thread spindles and mounting plate

19.392.1330 KT 90-D56-EP

XY stages KT 90, with fine-thread spindles and end plates

19.392.1325 KT 90-D56-MP-T

XY stages KT 90, with fine-thread spindles, mounting plate and wobble plate ø 56 mm

19.392.1335 KT 90-D56-EP-T

XY stages KT 90, with fine-thread spindles, end plates and wobble plate ø 56 mm

19.021.0060 RT 90-60-R

slide RT 90, 60 mm, with knurled screw

STF 15

pin 15 - s. product information STF 15
