XY Stages KT 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_kt_65.pdf

Description

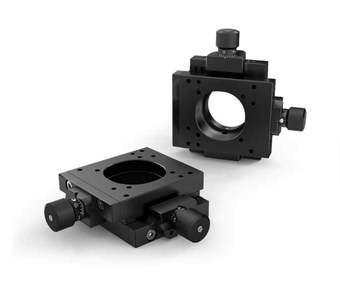

The KT 65 XY stages have a high-precision double-dovetail guide.

It allows fine adjustment in both X and Y direction. The aperture, 32 mm in diameter, is retained within the entire adjustment range.

The KT 65 XY stages are available with fine-thread spindles and graduated buttons. The travel is 6 mm on each axis.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with clamping
  • with fine-thread spindles
  • high load capacity
  • ways of installing:
    – on slide
    – on pin

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
16.362.0300 KT 65

XY stage KT 65 with fine-thread spindles

16.362.0303 KT 65-T-D35

XY stage KT 65 with fine-thread spindles and wobble plate ø 35 mm

16.362.0304 KT 65-T-D45

XY stage KT 65 with fine-thread spindles and wobble plate ø 45 mm

16.362.0320 KT 65-STA

XY stage KT 65 with fine-thread spindles and pin adapter plate

16.362.0323 KT 65-STA-T-D35

XY stage KT 65 with fine-thread spindles, pin adapter plate and wobble plate ø 35 mm

16.362.0324 KT 65-STA-T-D45

XY stage KT 65 with fine-thread spindles, pin adapter plate and wobble plate ø 45 mm

16.021.3028 RT 65-28-R

slide SYS 65, 28 mm wide, with knurled screw

16.021.1059 RT 65-59-R

slide RT 65, 59 mm, with knurled screw

STF 15

pin 15 - s. product information STF 15
