XY Fine Adjustment Stages FV 65-XY

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_fv_65-xy.pdf

Description

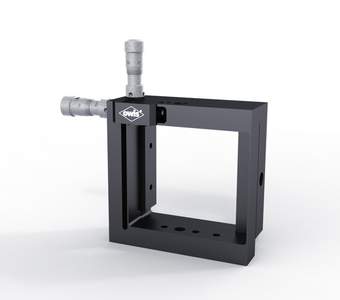

In order to adjust two axes with high precision, the FV 65-XY XY fine adjustment stages are used. Small travels can be moved with high sensitivity and very precisely.

Mounting a slide RT 65 to the XY fine adjustment stages, parts such as optical components can be adjusted in SYS 65.

Build-in spring elements make backlash-free motion possible. The XY fine adjustment stages have an opening of 40 x 40 mm where SYS 40 components (mounting plates, TRANS 40,...) can be fixed.

As adjusting elements fine-thread screws with knurled head and hexagon socket as well as micrometers, for highest adjusting accuracy, are available.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • sensitive adjustment of two axes
  • fine-thread screws or micrometers
  • backlash-free motion
  • flexible and compact design
  • ways of installing
    - for use with SYS 65 directly on slide RT 65
    - on pin

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
16.323.0100 FV 65-XY-40x40-FGS

XY fine-adjustment stage, 5 mm travel, with fine-thread screws

16.323.0200 FV 65-XY-40x40-MS

XY Fine Adjustment Stage, 5 mm travel, with micrometers

16.021.0020 RT 65-20-R

slide RT 65, 20 mm, with knurled screw

16.022.0020 RT 65-20-M4

slide RT 65, 20 mm, with hexagon socket head cap screw

26.204.xxxx TRANS 40x

transmitting mounts TRANS 40

STF 15

pin 15 - s. product information STF 15
