XY Fine Adjustment Stages FV 40-XY

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_fv_40-xy.pdf

Description

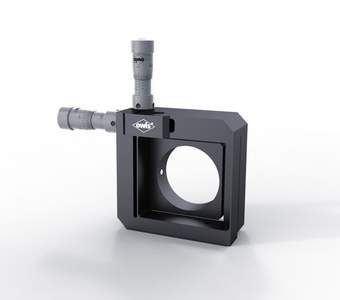

In order to adjust two axes with high precision, the FV 40-XY XY fine adjustment stages are used. Small travels can be moved with high sensitivity and very precisely.

Build-in spring elements make backlash-free motion possible. The XY fine adjustment stages have a location diameter of 25 mm, to retain for example mounted optics or laser accessories.

As adjusting elements fine-thread screws with knurled head and hexagon socket as well as micrometers, for highest adjusting accuracy, are available.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • sensitive adjustment of two axes
  • fine-thread screws or micrometers
  • backlash-free motion
  • flexible and compact design
  • way of installing
    - for use with SYS 40 directly on slide RT 40

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
14.323.0100 FV 40-XY-D25-FGS

XY fine adjustment stages, 3 mm travel, with fine-thread screws

14.323.0200 FV 40-XY-D25-MS

XY fine adjustment stages, 3 mm travel, with micrometers

14.021.0020 RT 40-20-R

slide SYS 40, 20 mm, with knurled screw

14.022.0020 RT 40-20-M3

slide RT 40, 20 mm, with hexagon socket head cap screw
