XY Adjusting Mounting Plates OH 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_oh_65.pdf

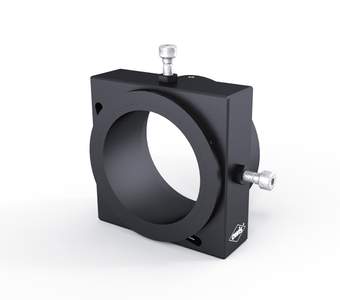

The OH 65 XY adjusting mounting plates are cost-effective and space-saving elements that are used in cases where XY stages or combinations of measuring stages are oversized or too expensive.

By means of two adjustment screws and a compression spring, these special mounts can be sensitively adjusted orthogonally to the optical axis in X and Y direction. The XY adjusting mounting plates may be used as components of the system SYS 65 or on pins.

The OH 65-D45-XY adjusting mounting plates offer a clamping diameter of 45 mm, the OH 65-D56-XY a clamping diameter of 56 mm with an aperture of 47 mm.

The XY adjusting mounting plates are equipped with two finethread screws. The special design enables a XY trans lation nearly on a plane surface.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ways of installing
    - on slide RT 25
    - on pin

- vacuum-prepared versions available

Art. Nbr. Type Title
16.021.0020 RT 65-20-R

slide RT 65, 20 mm, with knurled screw

16.202.0045 OH 65-D45-FGS-XY

XY adjusting mounting plates for ø 45 mm

16.202.0056 OH 65-D56-FGS-XY

XY adjusting mounting plates for ø 56 mm

16.022.0020 RT 65-20-M4

slide RT 65, 20 mm, with hexagon socket head cap screw

21.115.6425 STF 15-25-AM6-4

pin adapter M6-M6
