Universal Position Control Units PS 35

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ps_35.pdf

Description

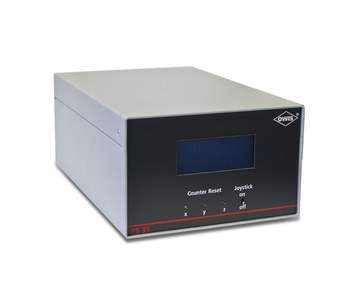

The PS 35 as an universal position control unit in a table top with

LCD controls up to three axes of 2 phase step motors or DC servo motors (brush). Different combinations of both motor types are possible. The display shows the status of each axis and its position

with measuring unit. Further, for each axis a reset button is provided.

Micro-step mode with step motors guarantees smooth running and high resolution. These motors can be operated up to 256 micro steps per full step using the software.

The PS 35 is operated and programmed by a PC. Several inputs and outputs are integrated to communicate with different peripherals, e.g. TTL, analog as well as two power outputs for motor holding brakes.

The PS 35 provides point-to-point positioning in trapeze or S-curve velocity-time-profiles.

Part of the delivery is a CD with the proven software tool OWISoft, the driver and SDK for C, C++, C#, LabView (V 8.2 and higher) and additional programming languages (32/64 bit). Thus, the PS 35 can be configured and operated comfortably.

Supported operating systems: Windows XP, Windows Vista (32/64 bit), Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit) and Windows 10 (32/64-Bit).

For power supply an external desktop power supply is required attached in accessories.

Foreign motors can also be operated.

  • up to 3 axes controllable
  • for 2-phase step motors and DC servo motors
  • micro step mode up to 1/256
  • USB and RS 232 interface
  • 8 TTL / analog inputs, as well as inputs for encoder
  • 2 configurable limit switch inputs per axis
  • 5 TTL and 2 power outputs
  • point-to-point operation, circular interpolation and linear interpolation
  • programmable velocity profiles

Options
- joystick
- stand-alone compiler
- emergency-stop button

Art. Nbr. Type Title
54.35.130 PS 35-3SM

control unit for 3 x 2-ph. step motors

54.35.121 PS 35-2SM-1DS

control unit for 2 x 2-ph. step motors and 1 x DC servo motor (brush)

54.35.112 PS 35-1SM-2DS

control unit for 1 x 2-ph. step motor and 2 x DC servo motors (brush)

54.35.103 PS 35-3DS

control unit for 3 DC servo motors (brush)

53.20.S300 KAB-09-HD15-3

connecting cable 3 m long, shielded, for 2-phase step motor up to 1.8 A

53.20.D301 KAB-09-HD26-3

connecting cable 3 m, shielded, for DC servo motor (brush) up to 3.6 A

54.35.2490 NT-2490-SV

external desktop power supply unit for power supply of the controls PS 10, PS 30 and PS 35

53.90.9994 PS 30-90-JOY-3

joystick for 3 axes, analog, with connecting cable, 3m

53.90.9993 PS 90-RS 232

RS 232-interface cable, 3 m

54.35.0019 PS 35-19R

19" rack

53.93.0000 PS 90-SA-USB

stand-alone-compiler with USB-dongle
