Universal Position Control Cards PS 30

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ps_30.pdf

Description

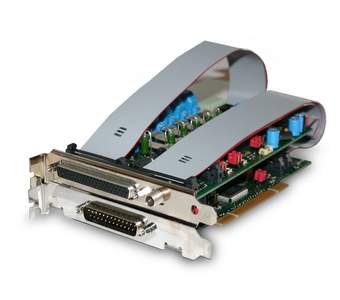

The OWIS PS 30 is an universal position control unit for installation in a PC.

It consists of a plug-in card and an output stage module without PCI connector, mounted on a second slot panel (short PCI format 106 x 168 mm). Both cards are flexibly connected by a flat ribbon cable.

The PS 30 is a high-performance device and can operate up to maximum 3 axes with 2-phase step or brush DC servo motors. Different combinations of both motor types are possible.

For high-precision positioning tasks there is a further input for incremental encoder or a position measuring system available for each axis.

Micro-step mode with step motors guarantees smooth running and high resolution. These motors can be operated up to 256 micro steps per full step using the software.

The PS 30 is operated and programmed by a PC. Several inputs and outputs are integrated to communicate with different peripherals, e.g. TTL, analog as well as two power outputs for motor holding brakes.

The PS 30 provides point-to-point positioning in trapeze or S-curve velocity-time-profiles.

Part of the delivery is a 3-fold motor adapter cable, as well as a CD

with the proven software tool OWISoft, the driver and SDK for C, C++, C#, LabView (V 8.2 and higher) and additional programming languages (32/64 bit). Thus, the PS 30 can be configured and operated comfortably.

Supported operating systems: Windows XP, Windows Vista (32/64 bit), Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit) and Windows 10 (32/64-Bit).

Foreign motors can also be operated.

  • up to 3 axes controllable
  • for 2-phase step motors and DC servo motors
  • micro step mode up to 1/256
  • PCI plug-in card
  • 8 TTL / analog inputs, as well as inputs for encoder
  • 2 configurable limit switch inputs per axis
  • 5 TTL and 2 power outputs
  • point-to-point operation, circular interpolation and linear interpolation
  • programmable velocity profiles

Options
- joystick
- connection for measuring systems
- stand-alone compiler
- emergency-stop button

Art. Nbr. Type Title
54.30.130 PS-30-3SM

3-axis control card for 3 x 2-phase step motors

54.30.121 PS-30-2SM-1DS

3-axis control card for 2 x 2-phase step motors and 1 x DC servo motor (brush)

54.30.112 PS-30-1SM-2DS

3-axis control card for 1 x 2-phase step motor and 2 x DC servo motors (brush)

54.30.103 PS-30-3DS

3-axis control card for 3 DC servo motors (brush)

53.20.S300 KAB-09-HD15-3

connecting cable 3 m long, shielded, for 2-phase step motor up to 1.8 A

53.20.D301 KAB-09-HD26-3

connecting cable 3 m, shielded, for DC servo motor (brush) up to 3.6 A

54.35.2490 NT-2490-SV

external desktop power supply unit for power supply of the controls PS 10, PS 30 and PS 35

53.90.9994 PS 30-90-JOY-3

joystick for 3 axes, analog, with connecting cable, 3m

54.30.9016 PS 30-LMS9-A3

connection for 3 extra linear measuring systems

53.90.9015 PS 90-3LMS

evaluation measuring system for 3 axes

53.93.0000 PS 90-SA-USB

stand-alone-compiler with USB-dongle
