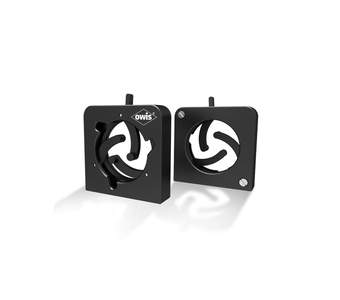

Universal Optic Holders UNOH 40

External URL owis.eu
DATASHEET pi_unoh_40.pdf

Description

The universal optic holders UNOH 40 are for optics from 9 mm up to 25.4 mm in diameter. They can be mounted on slides RT 40 for use in SYS 40 or on pins flexible.

A small lever opens the arms and the optics can be mounted easy as a winking. The release of the lever closes the high-quality plastic arms and holds them securely in the center of the beam with the UNOH 40.

  • for use with SYS 40
  • deformation-resistant aluminium
  • refection-poor, black anodized
  • holding arms made of POM
  • for optics from ø 9 mm up to 25.4 mm
  • ways of installing
    - on slide RT 40
    - with STF 15-25-AM4-3 on pin
Art. Nbr. Type Title
14.105.0926 UNOH 40

universal optic holders for optics from ø 9 mm up to 25.4 mm

14.021.0010 RT 40-10-R

slide SYS 40, 10 mm, with knurled screw

14.022.0010 RT 40-10-M3

slide SYS 40, 10 mm wide, with hexagon socket head cap screw ISO 4762

21.115.4325 STF 15-25-AM4-3

pin adapter M6-M4
