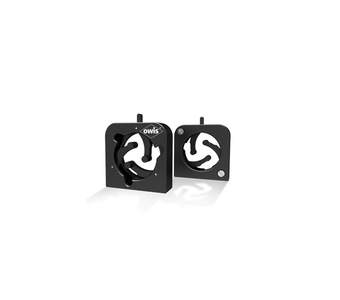

Universal Optic Holders UNOH 25

External URL owis.eu
DATASHEET pi_unoh_25.pdf

Description

The universal optic holders UNOH 25 are for optics from 7 mm up to 16 mm in diameter. They can be mounted on slides RT 25 for use in SYS 25 or on pins flexible.

A small lever opens the arms and the optics can be mounted easy as a winking. The release of the lever closes the high-quality plastic arms and holds them securely in the center of the beam with the UNOH 25.

  • for use with SYS 25
  • deformation-resistant
  • aluminium refection-poor, black anodized
  • holding arms made of POM
  • for optics from ways of installing ø 7 mm up to 16 mm
  • ways of installing
    - on slide RT 25
    - with STF 15-25-AM4-3 on pin
Art. Nbr. Type Title
12.105.0716 UNOH 25

universal optic holders for optics from ø 7 mm up to 16 mm

12.021.0008 RT 25-8-R

slide SYS 25, 8 mm, with knurled screw

12.022.0008 RT 25-8-M2,5

slide SYS 25, 8 mm, with hexagon socket head cap screw ISO 4762

21.115.4325 STF 15-25-AM4-3

pin adapter M6-M4
