Transmitting Mounts with lateral screws TRANS 40S

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_trans_40s.pdf

Description

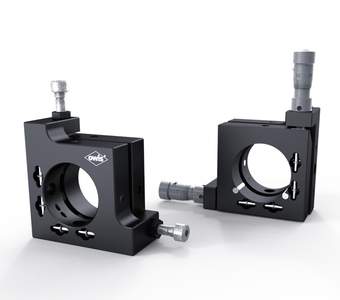

Compared to versions with micrometers parallel to the optical axis, the TRANS 40S transmitting mounts with lateral screws save considerable space in the optical axis. Furthermore, the danger of accidental contact with the beam during the adjustment is almost excluded.

As with the standard versions, there is the possibility for mounting two optics. Beside the adjustable element, a filter or a similar component can be fitted, without influencing existing space.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with lateral micrometers or fine-thread screws
  • 2 holes to fix optics with ø 25 mm
  • ways of installing
    - on slide RT 40-20-R
    - on slide RT 40-20-R-LL
    - on pin
    - on an optical table via adapter plate

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
26.204.3251 TRANS 40S-D25-FGS

transmitting mounts for mounted optics ø 25 mm , with lateral fine-thread screws

26.204.3252 TRANS 40S-D25-MS

transmitting mounts for mounted optics ø 25 mm, with lateral micrometers

26.105.9001 FP-K50-LL

base plate with slotted hole, 45 x 30 x 7.5 mm

14.021.0020 RT 40-20-R

slide SYS 40, 20 mm, with knurled screw

14.022.0020 RT 40-20-M3

slide RT 40, 20 mm, with hexagon socket head cap screw

14.021.3020 RT 40-20-R-LL

slide RT 40, 20 mm, with slotted hole for M3 and knurled screw

14.022.3020 RT 40-20-M3-LL

slide RT 40, 20 mm, with slotted hole for M3 and hexagon socket head cap screw

STF 15

pin 15 - s. product information STF 15
