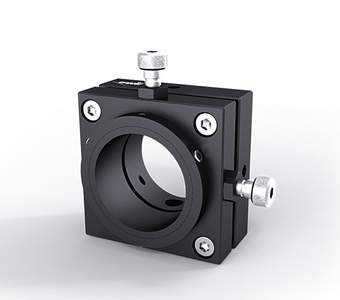

Transmitting Mounts with disc springs TRANS 40T-XY

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_trans_40t-xy.pdf


The TRANS 40T-XY transmitting mounts with disc springs are based on TRANS 40T transmitting monts, but with additional XY adjustment (comparable with the OH 40 XY adjusting mounting plates). This construction allows you to adjust an optical part in XY direction as well as in theta and phi and Z direction. Since an allen key is needed for adjustment of the tilting, unintentional disturbance of a setting is practically impossible.

In addition, this design is extremely compact, so that the TRANS 40T-XY are especially suitable for use in industrial applications.

As with the standard versions, there is the possibility for mounting two optics. Beside the adjustable element, a filter or a similar component can be fitted not influencing existing space.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • XY adjustment with lateral fine-thread screws and theta-phi adjustment
  • 2 holes to fix optics with ø 25 mm
  • ways of installing
    - on slide RT 40-20-R
    - on slide RT 40-20-R-LL
    - on pin
    - on an optical table via adapter plate
Art. Nbr. Type Title
26.204.5253 TRANS 40T-D25-XYZ

transmitting mount TRANS 40T-XY, ø 25 mm, for mounted optics, with disc springs
for theta-phi and Z adjustment and two lateral fine-thread screws for XY adjustment

26.105.9001 FP-K50-LL

base plate, 45 x 30 x 7.5 mm, with slotted hole

14.021.0020 RT 40-20-R

slide SYS 40, 20 mm, with knurled screw

14.022.0020 RT 40-20-M3

slide RT 40, 20 mm, with hexagon socket head cap screw

14.021.3020 RT 40-20-R-LL

slide RT 40, 20 mm, with slotted hole for M3 and knurled screw

14.022.3020 RT 40-20-M3-LL

slide RT 40, 20 mm, with slotted hole for M3 and hexagon socket head cap screw

STF 15

pin 15 - s. product information STF 15
