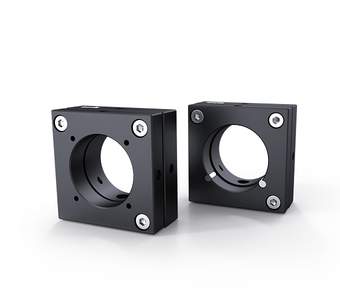

Transmitting Mounts with disc springs TRANS 40T

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_trans_40t.pdf

Description

The TRANS 40T transmitting mounts with disc springs have been specially developed for applications that may be subject to vibration. They have excellent longterm stability. Since a hexagon wrench key is needed for adjustment, unintentional disturbance of a setting is practically impossible. In addition, this design with disc springs is extremely compact, so the TRANS 40T are especially suitable for use in industrial applications.

As with the standard version, there is the possibility for mounting two optics. Beside the adjustable element, a filter or a similar component can be fitted not influencing existing space.

The TRANS 40T can be supplied for mounting on pins with an M6 external thread, or for SYS 40, on a
slide RT 40-20.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • compact design
  • longterm stability also at vibration
  • 2 holes to fix optics with ø 25 mm / ø 25.4 mm (1")
  • ways of installing
    - on slide RT 40-20-R
    - on slide RT 40-20-R-LL
    - on pin
    - on an optical table via adapter plate

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
26.204.2503 TRANS 40T-D25

transmitting mount with disc springs, for mounted ø 25 mm optics and theta-phi adjustment

26.204.2603 TRANS 40T-D26

transmitting mount with disc springs for unmounted ø 25 mm / 25.4 mm (1") optics and theta-phi adjustment

26.105.9001 FP-K50-LL

base plate with slotted hole, 45 x 30 x 7.5 mm

14.021.0020 RT 40-20-R

slide SYS 40, 20 mm, with knurled screw

14.022.0020 RT 40-20-M3

slide RT 40, 20 mm, with hexagon socket head cap screw

14.021.3020 RT 40-20-R-LL

slide RT 40, 20 mm, with slotted hole for M3 and knurled screw

14.022.3020 RT 40-20-M3-LL

slide RT 40, 20 mm, with slotted hole for M3 and hexagon socket head cap screw

STF 15

pin 15 - s. product information STF 15
