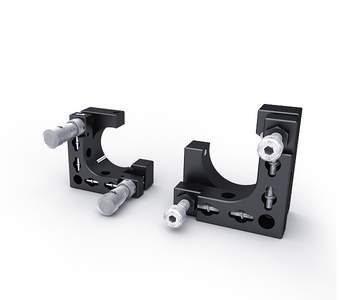

Transmitting Mounts with clear edge TRANS 40C

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_trans_40c.pdf

Description

The transmitting mounts with clear edge TRANS 40C are used especially for transmitting optics and beamsplitters. Alternatively there can be assembled mounted optics with 25 mm diameter or unmounted with 1" diameter in the beam path.

Because of the openings at the carrier- and clamping plate, the light path can directed next to the optic, in an angle or deflected.

The two fine-thread screws or micrometers allow a sensitive adjustment.

Transmitting mounts with a third fine-thread screw on request.

The M2.3 and M6 threaded holes on both sides of the carrier plate permit a left and right hand operation on slides RT 40 or pins STF 15.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • theta-phi adjustment
  • ways of installing
    - with M6 threaded hole
    - on pin
    - on a slide RT 40

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
26.204.6251 TRANS 40C-D25-FGS

transmitting mount with clear edge, ø 25 mm, with fine adjustment screws

26.204.6252 TRANS 40C-D25-MS

transmitting mount with clear edge, ø 25 mm, with micrometers

26.204.6261 TRANS 40C-D26-FGS

transmitting mount with clear edge, ø 25 mm / 25.4 mm (1"), with fine-thread screws

26.204.6262 TRANS 40C-D26-MS

transmitting mount with clear edge, ø 25 mm / 25.4 mm (1"),



with micrometers

26.105.9001 FP-K50-LL

slotted base plate, 45 x 30 x 7.5 mm

14.021.0020 RT 40-20-R

slide SYS 40, 20 mm, with knurled screw

14.021.3020 RT 40-20-R-LL

slide RT 40, 20 mm, with slotted hole for M3 and knurled screw

STF 15

pin 15 - s. product information STF 15
