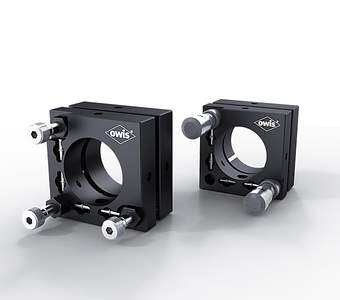

Transmitting Mounts, standard TRANS 40

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_trans_40.pdf

Description

In the standard version (ø 25 mm) of the transmitting mounts TRANS 40, both the fixed and the adjustable plate can retain mounted optics with 25 mm outside diameter.

The fixed plate of the ø 25.4 mm (1") version retains 25 mm mounted optics, the adjustable plate ø 25.4 mm (1") unmounted optics.

Apart from the choice between fine-thread screws and micrometers, an op­tional third adjustment screw permits the center of rotation to be shifted along the Z axis.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with micrometers or fine thread screws in direction of optical axis
  • 2 retainers for optics with ø 25 mm / ø 25.4 mm (1")
  • ways of installing
    – on slide RT 40-20-R
    – on slide RT 40-20-R-LL
    – on pin
    – on an optical table via adapter plate

Option- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
26.204.2501 TRANS 40-D25-FGS

transmitting mount for mounted ø 25 mm optics, with fine-thread screws

26.204.2502 TRANS 40-D25-MS

transmitting mount for mounted ø 25 mm optics, with micrometers

26.204.2504 TRANS 40-D25Z-FGS

transmitting mount for mounted ø 25 mm optics, with fine-thread screws and Z adjustment

26.204.2505 TRANS 40-D25Z-MS

transmitting mount for mounted ø 25 mm optics, with micrometers and Z adjustment

26.204.2601 TRANS 40-D26-FGS

transmitting mount for unmounted ø 25.4 mm (1") optics, with fine-thread screws

26.204.2602 TRANS 40-D26-MS

transmitting mount for unmounted ø 25.4 mm (1") optics, with micrometers

26.204.2604 TRANS 40-D26Z-FGS

transmitting mount for unmounted ø 25.4 mm (1") optics, with fine-thread screws and Z adjustment

26.204.2605 TRANS 40-D26Z-MS

transmitting mount for unmounted ø 25.4 mm (1") optics, with micrometers and Z adjustment

26.105.9001 FP-K50-LL

base plate with slotted hole, 45 x 30 x 7.5 mm

14.021.0020 RT 40-20-R

slide SYS 40, 20 mm, with knurled screw

14.021.3020 RT 40-20-R-LL

slide RT 40, 20 mm, with slotted hole for M3 and knurled screw

STF 15

pin 15 - s. product information STF 15
