Transmitting Mounts, standard TRANS 25C

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_trans_25c.pdf

Description

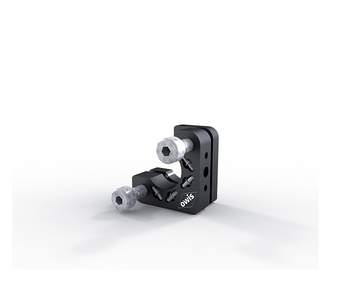

The transmitting mount TRANS 25C is used especially for transmitting and beamsplitting optics with 12.7 mm ") diameter.

Because of the openings at the carrier- and clamping plate, the

light path can be directed close to the optic, in an angle or deflected.

The two fine-thread screws allow a sensitive adjustment.

To mount it on slides RT 25, the transmitting mount has M2.5 threaded holes. The M4 threaded hole is used to mount it on pins with the pin adapter STF 15-25-AM4-3. When mounted on system rails S 25 LL with slides RT 25, the height of the optical axis from 25 mm is guaranteed.

  • for use with SYS 25
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • theta-phi adjustment
  • ways of installing
    - with M4 threaded hole
    - on pin
    - on a slide RT 25

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
26.202.0131 TRANS 25C-D13-FGS

transmitting mount with fine-thread screws

12.021.0015 RT 25-15-R

slide SYS 25, 15 mm, with knurled screw

12.022.0015 RT 25-15-M2,5

slide RT 25, 15 mm, with hexagon socket head cap screw

21.115.4325 STF 15-25-AM4-3

pin adapter M6-M4
