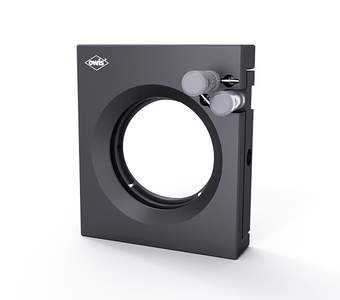

Transmitting Mounts, gimbal TRANS 90G

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_trans_90g.pdf

Description

The TRANS 90G gimbal transmitting mounts have been optimized for maximum aperture with low beam hight. They accept optics with ø 76.2 mm (3") diameter. For mounting on standard thread grids, a base plate is available.

The transmitting mounts can be supplied with fine-thread screws or micrometers.

On request, reduction inserts are available.

  • for use with SYS 90
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • sensitive adjustable
  • gimbal-mounted
  • compact design
  • retainer Diameter ø 76.2 mm (3")
  • ways of installing
    - using the central M6 threaded hole or the two M4 threaded holes
    - for use with SYS 90 direct with slide RT 90
    - with FP 70x70x15 on an optical table
Art. Nbr. Type Title
26.309.0761 TRANS 90G-D76-FGS

transmitting mounts, gimbal, ø 76.2 mm (3"), for unmounted optics, with fine-thread screws

26.309.0762 TRANS 90G-D76-MS

transmitting mounts, gimbal, ø 76.2 mm (3"), for unmounted optics, with micrometers

26.907.0015 FP 70x70x15

base plate 70 x 70 x 15 mm

19.021.0040 RT 90-40-R

slide SYS 90, 40 mm, with knurled screw

19.022.0040 RT 90-40-M6

slide SYS 90, 40 mm, with hexagon socket head cap screw

STF 15

pin 15 - s. product information STF 15
