Transmitting Mounts, gimbal TRANS 65G

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_trans_65g.pdf

Description

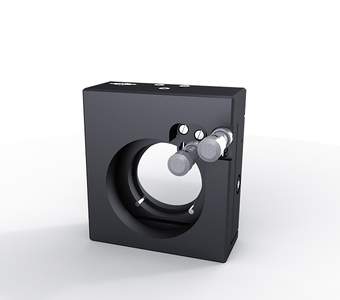

The TRANS 65G gimbal transmitting mounts were developed specially for SYS 65, accept  ø 38.1 mm (1.5") optics and have a beam height of only 32.5 mm. There is a separate base plate for fitting them on standard thread grids.

The transmitting mounts can be supplied with fine-thread screws or micrometers.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • sensitive adjustable
  • gimbal-mounted
  • compact design
  • retainer diameter  ø 38.1 mm (1.5")
  • ways of installing
    - using the central M6 threaded hole or the two M4 threaded holes
    - via adapter plates on translation and measuring stages
    - with FP-K50-LL on an optical table

Option
- non-magnetic versions available

Art. Nbr. Type Title
26.306.0381 TRANS 65G-D38-FGS

gimbal transmitting mount TRANS 65G, ø 38.1 mm (1.5"), for unmounted optics, with fine adjustment screws

26.306.0382 TRANS 65G-D38-MS

gimbal transmitting mount TRANS 65G, ø 38.1 mm (1.5"), for unmounted optics, with fine adjustment screws

24.900.6010 ADP 60-A

adapter plate 60-A (60 x 60 x 7.5 mm), for mounting SYS 40 and SYS 65 components, VT 45 translation stages, and MT 45 and 50 measuring stages on 50 mm 4 x M4 bore grids.

26.105.9001 FP-K50-LL

base plate 70 x 70 x 15 mm

16.021.0020 RT 65-20-R

slide SYS 65, 20 mm, with knurled screw

16.022.0020 RT 65-20-M4

slide RT 65, 20 mm, with hexagon socket head cap screw

26.306.9026 RZE-G65-E-D38-D26

reduction insert, 38.1 mm to ø 25 mm / 25.4 mm (1")

STF 15

pin 15 - s. product information STF 15
