Transmitting Mounts, gimbal TRANS 150G

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_trans_150g.pdf

Description

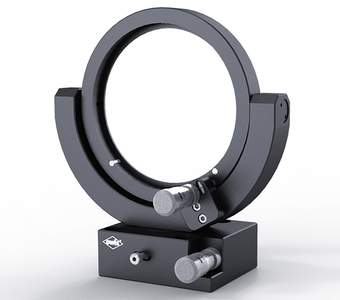

The TRANS 150G gimbal transmitting mounts can be used for transmitting and beamsplitting optics. There is unlimited coarse adjustment around the vertical axis. With a beam height of 105 mm, they are for use with
SYS 90 without a rail-slide combination.

The transmitting mounts can be supplied with fine-thread screws or micrometers.

  • for use with SYS 90
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • sensitive adjustable
  • gimbal-mounted
  • compact design
  • retainer diameter ø 101.6 mm (4")
  • way of installing
    - via four counterbores M6 in a grid of 50/50.8 mm
Art. Nbr. Type Title
26.315.1021 TRANS 150G-D102-FGS

transmitting mounts, gimbal, ø 101.6 mm (4"), for unmounted optics, with fine-thread screws

26.315.1022 TRANS 150G-D102-MS

transmitting mounts, gimbal, ø 101.6 mm (4"), for unmounted optics, with micrometers
