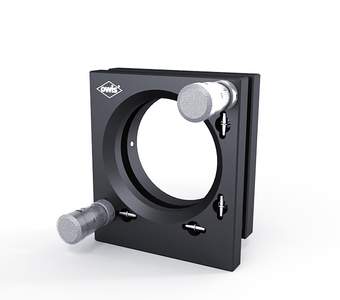

Transmitting Mounts TRANS 80

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_trans_80.pdf

Description

The TRANS 80 transmitting mounts are supplied for mounted optics with 56 mm outside diameter,
or ø 50.8 mm (2") unmounted optics. They are available for mounts or unmounted elements up to
65 mm diameter on request.

The transmitting mounts can be supplied with fine-thread screws or micrometers.

  • for use with SYS 90
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • theta-phi adjustment
  • ways of installing
    - using the central M8 threaded hole or the two M6 threaded holes
    - directly or via a base plate, in that case the X and Y direction can be moved and the mirror plane
      rotated with the slots
    - with FP 70x70x15 on a slide RT 90-80-R

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
26.208.0561 TRANS 80-D56-FGS

transmitting mounts ø 56 mm, for mounted optics, with fine adjustment screws

26.208.0562 TRANS 80-D56-MS

transmitting mounts ø 56 mm, for mounted optics, with micrometers

26.208.1501 TRANS 80U-D51-FGS

transmitting mounts ø 50 mm / 50.8 mm (2"), for unmounted optics, with fine adjustment screws

26.208.1502 TRANS 80U-D51-MS

transmitting mounts ø 50 mm / 50.8 mm (2"), for unmounted optics, with micrometers

26.907.0015 FP 70x70x15

base plate 70 x 70 x 15 mm

19.021.0080 RT 90-80-R

slide SYS 90, 80 mm, with knurled screws

19.022.0080 RT 90-80-M6

slide SYS 90, 80 mm, with hexagon socket head cap screws ISO 4762

21.115.8325 STF 15-25-AM8-3

pin adapter M6-M8
