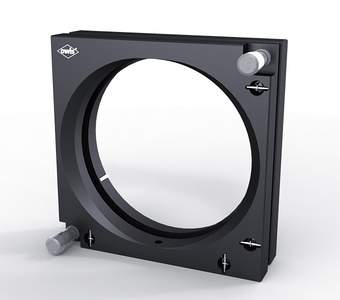

Transmitting Mounts TRANS 100

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_trans_100.pdf

Description

The center heights of the TRANS 100 transmitting mounts are selected in such a way that those of the sizes ø 76.2 mm (3") and ø 101.6 mm (4") achieve 65 mm height without plate. Thus, installed on slides RT 90, they reach the system height of the SYS 90 of 105 mm. The sizes ø 127 mm (5") and ø 152.4 mm (6") reach the system height of 105 mm, when assembled on a base plate of FP 70x70x15.

The transmitting mounts can be supplied with fine-thread screws or micrometers.

  • for use with SYS 90
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • theta-phi adjustment
  • ways of installing
    – for use with SYS 90 directly on slide RT 90-110 (ø 76.2 mm / ø 101.6 mm)
    – on optical table with base plate FP 70x70x15
    – on pin with pin adapter M6-M8

Options
- other Diameters
- vacuum-prepared versions available

Art. Nbr. Type Title
26.212.0761 TRANS 100-D76-FGS

transmitting mounts, ø 75 mm / 76.2 mm (3"), for unmounted optics, with fine-thread screws

26.212.0762 TRANS 100-D76-MS

transmitting mounts, ø 75 mm / 76,2 mm (3"), for unmounted optics, with micrometers

26.212.1021 TRANS 100-D102-FGS

transmitting mounts, ø 101.6 mm (4"), for unmounted optics, with fine-thread screws

26.212.1022 TRANS 100-D102-MS

transmitting mounts, ø 101.6 mm (4"), for unmounted optics, with micrometers

26.218.1271 TRANS 100-D126-FGS

transmitting mounts, ø 127 mm (5"), for unmounted optics, with fine-thread screws

26.218.1272 TRANS 100-D126-MS

transmitting mounts, ø 127 mm (5"), for unmounted optics, with micrometers

26.218.1521 TRANS 100-D152-FGS

transmitting mounts, ø 152.4 mm (6"), for unmounted optics, with fine-thread screws

26.218.1522 TRANS 100-D152-MS

transmitting mounts, ø 152.4 mm (6"), for unmounted optics, with micrometers

26.907.0015 FP 70x70x15

base plate 70 x 70 x 15 mm

19.021.0110 RT 90-110-R

slide SYS 90, 110 mm, with knurled screw

19.022.0110 RT 90-110-M6

slide SYS 90, 110 mm, with hexagon socket head cap screw

98.003.0806 GRH M8-M6-6

thread reduction bush M8 of M6, 6 mm
