Translation Stages VT 65-Z

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_vt_65-z.pdf

Description

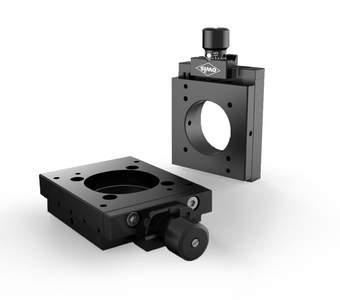

The VT 65-Z translation stages have a high-precision dovetail guide.

It allows fine adjustment in Z direction. The aperture, 32 mm in diameter, is retained within the entire adjustment range.

The VT 65-Z translation stages are available with fine-thread spindle and graduated button. The travel is 6 mm.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with clamping
  • with fine-thread spindle
  • high load capacity
  • ways of installing
     - on slide
    - on pin

Option
- non-magnetic and vacuum-prepared versions available

Art. Nbr. Type Title
16.361.0300 VT 65-Z-FGS

translation stage VT 65-Z without slide/end plate

16.361.0320 VT 65-Z-FGS-STAP

translation stage VT 65-Z with pin adapter plate

16.021.1059 RT 65-59-R

slide RT 65, 59 mm, with knurled screw

16.021.3028 RT 65-28-R

slide RT 65, 28 mm wide, with knurled screw
