Translation Stages VT 65-XYZ

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_vt_65-xyz.pdf

Description

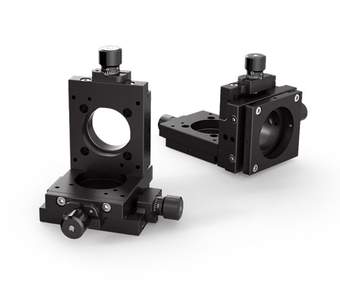

The VT 65-XYZ translation stages have high-precision dovetail guides.

They allow fine adjustment along the X, Y as well as the Z axis. The aperture of the Z axis of the VT 65-XYZ-FGS, 32 mm in diameter, is retained within the entire adjustment range. The translation stages with wobble plate have an opening of ø 25 mm.

The VT 65-XYZ translation stages are available with fine-thread spindles and graduated buttons. The travel is 6 mm on each axis.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with clamping
  • with fine-thread spindles
  • high load capacity
  • way of installing
    - on slide

Option
 - non-magnetic versions available

Art. Nbr. Type Title
16.363.0300 VT 65-XYZ-FGS

translation stage VT 65 XYZ with fine-thread spindles

16.363.0303 VT 65-XYZ-FGS-OH-D35

translation stage VT 65 XYZ with fine-thread spindles and wobble plate ø 35 mm

16.363.0304 VT 65-XYZ-FGS-OH-D45

translation stage VT 65 XYZ with fine-thread spindles and wobble plate ø 45 mm

16.021.1059 RT 65-59-R

slide RT 65, 59 mm, with knurled screw
