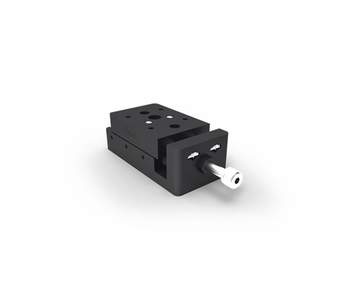

Translation Stages VT 30

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_vt_30.pdf

Description

The translation stages VT 30 position small parts or samples and adjust them. Due to the integrated dovetail guide, they can carry relatively high loads. With the counterbores for M3 and the thread adapters M6-M3 the VT 30 can be mounted directly on optical tables. The translation stages are equipped with a fine-thread screw, optional a micrometre is available.

The XY mounting is possible with the mounting plate MP-VT 30-XY. To use the VT 30 as a Z axis the Z bracket MONT VT 30-Z is available.

  • travel 12 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with fine-thread screw
  • high load capacity
  • maintenance free
  • ways of installing:
    - on optical table with thread adapter M6-M3
Art. Nbr. Type Title
31.030.1231 VT 30-12-FGS

Translation stage with 12 mm travel

31.030.0004 MP-VT 30-XY

XY assembly kit for linear stages of the VT 30 series, without assembly

31.030.0001 MONT VT30-Z

Z assembly bracket for linear stages of the VT 30 series, without assembly
