Translation Stages VT 14

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_vt_14.pdf

Description

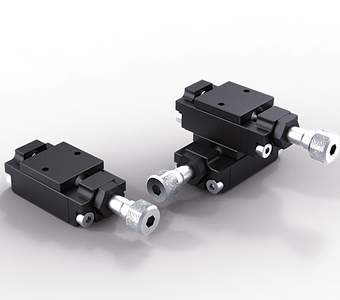

The VT 14 miniature translation stages are suited for the adjustment or positioning of smallest parts or samples.

Due to the integrated dovetail guide, they can carry relatively high loads.

The feed motion is transmitted to the slide by means of a fine-thread screw with knurled head.

Spring preload on the opposite side enables backlash-free motion.

To mount the VT 14 on optical tables, an adapter plate is available.

  • miniature version
  • particularly flat assembly height
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with fine-thread screw
  • high load capacity:
  • way of installing:
    – on optical table with adapter plate ADP 65B

Option
- non-magnetic versions available

Art. Nbr. Type Title
31.014.0001 VT 14-5-X-FGS

translation stage with 5 mm travel in X version and fine-thread screw

31.014.0002 VT 14-5-XY-FGS

translation stage with 5 mm travel in XY version and fine-thread screws

35.065.9000 ADP 65B

adapter plate 65 x 35 x 7.5 mm
