Tilt Stages NT 40

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_nt_40.pdf

Description

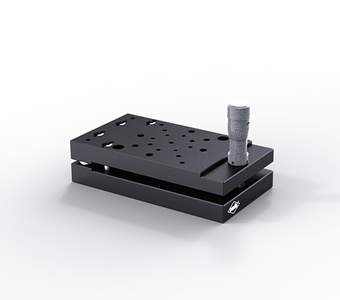

The tilt stages NT 40 are high-resolution tilting elements, that are normally mounted horizontally. The axis of rotation is defined by the centres of two precision steel balls, and the tilting angle is set by a micrometer or a
fine-thread screw.

The fastening grids enable them to be combined to 2-axis setups. Furthermore, they can be combined to measuring, translation, elevator and rotary stages, by using other OWIS components.

  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • fine-thread screws or micrometers
  • fastening grids in table surface as well as in bottom
Art. Nbr. Type Title
26.704.0001 NT 40x65-FGS

tilt stages, angular adjustment range ±6°, with fine-thread screw

26.704.0002 NT 40x65-MS

tilt stages, angular adjustment range ±6°, with micrometer
