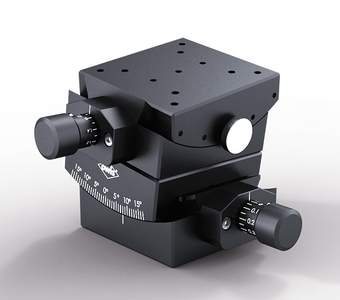

Theta-Phi Goniometers TP 90

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_tp_90.pdf

Description

The theta-phi goniometers TP 90 enable a precise adjustment with the help of precision worm gears and adjustable dovetail guides of ±20° (GO 65L) resp. ±15° (GO 90) around a defined optical point.

The center of rotation is 32.5 mm above the mounting surface, the free space created can be used for prisms, holders or other optics.

  • for use with SYS 90
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • adjustable dovetail guide
  • way of installing
    - directly on optical table

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
35.690.3040 TP 90-W30-W40

theta-phi goniometer, adjustment range ± 15° and ± 20°
