Theta-Phi Goniometers TP 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_tp_65.pdf

Description

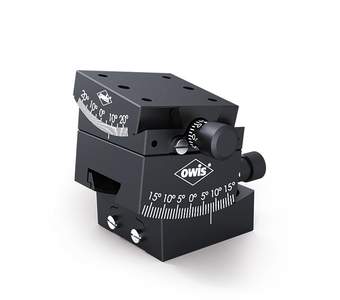

The TP 65 theta-phi goniometers enable a precise adjustment with the help of precision worm gears and adjustable dovetail guides of ± 15° (GO 65S) resp. ± 20° (GO 40) around a defined optical point.

The center of rotation is 20 mm above the mounting surface, the free space created can be used for prisms, holders or other optics.

In order to reach the system height of the SYS 65, ADP 65B adapter plates are needed.
Motorized versions (step motor or DC servo motor) on request, see also chapter M of the catalogue.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • adjustable dovetail guides
  • way of installing
    - on optical table with adapter plate ADP 65B

Option
- vacuum-prepard versions available

Art. Nbr. Type Title
35.465.3040 TP 65-W30-W40

theta-phi goniometers, adjustment range ± 15° and ± 20°

35.065.9000 ADP 65B

adapter plate 65 x 35 x 7.5 mm
