Theta-Phi-Goniometers TP 150-20-20-243

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_tp_150-20-20-243.pdf

Description

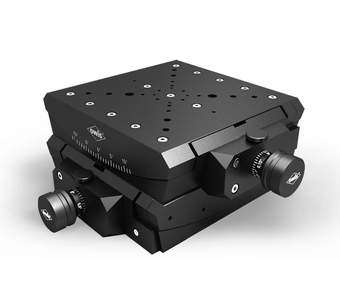

The TP 150-20-20-243 theta-phi goniometer provides high-precision positioning for high loads. To achieve high accuracy, the TP 150-20-20-243 is equipped with components made with high precision.

The low-backlash worm gear drive allows further mountings in the direction using horizontal and vertical travel range, but also upside down applications. The special developed bearing system enables high loads with high resolution.

The distance between the mounting surface and the rotation point of 163 mm offers enough space for the setup.

The adjustment range is ± 10°. The top quality black anodized protective coating of the aluminium parts prevents reflections or stray light almost completely.

Motorized version (step motor or DC servo motor), see chapter ‘Motorized Positioning Systems’.

  • djustment range ± 10°
  • designed for industrial application
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • low-backlash worm gear
  • specially developed bearing sytem
  • clamping at rotation knob

TECHNICEL INFORMATION TP 150-20-20-243

Art. Nbr. Type Title
35.N53.2020 TP 150-20-20-243

height of rotation point 243 mm
