Small Mirror Mounts, kinematic K 25

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_k_25.pdf

Description

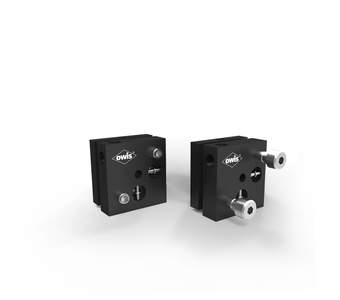

The K 25 kinematic small mirror mounts are intended for mirrors up to ø 25 mm / 25.4 mm (1") diameter, or, when used for beam deflection, for 20 x 30 mm rectangular mirrors.

Two fine-thread screws or micrometers with 0.25 mm pitch enable fine adjustments.

For a high flexibility, the mirrors for the K 25 are glued on a glass substrate. This is wedged into the carrier plate and so a fast mirror change is possible.

  • for use with SYS 40 (with base plate FP-K25-LL)
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • lockable for fixing the adjustment
  • ways of installing
    - with M4 threaded hole
    - on pin, either directly, or via a base plate, in that case the slot can be used to bring the reflecting surface
      onto the centerline of the pin
    - fastening with a base plate FP-K25-LL on a slide RT 40

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
26.102.0001 K 25-FGS

small mirror mounts, kinematic, with fine-thread screws

26.102.0002 K 25-MS

small mirror mounts, kinematic, with micrometers

26.102.0003 K 25-OR

small mirror mounts, kinematic, with fine-thread screw without knurl

26.102.9002 STSH 25

glass substrate (mirror carrier) ø 6.35 mm (1/4") for stressfree mounting to the K 25

26.102.9001 FP-K25-LL

base plate with slotted hole for K 25 and TRANS 25T

21.115.4325 STF 15-25-AM4-3

pin adapter M6-M4

14.021.0040 RT-40-40-R

slide SYS 40, 40 mm, with knurled screw

14.022.0040 RT 40-40-M3

slide SYS 40, 40 mm, with hexagon socket head cap screw
