SYS 90 Slides RT 90

External URL owis.eu
DATASHEET pi_rt_90.pdf

Description

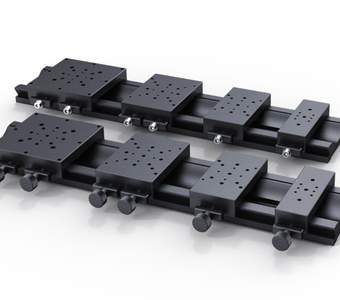

The RT 90 slides are used to realize setups with high beam heights. Also, they can carry large or heavy components.

To fix the RT 90 they are equipped with a clamping fork. These give a high stability to the slides. The structure of the clamping pieces guarantees a high adhesion without consistant deformation of the rail.

The RT 90 slides are available with knurled screw or with hexagon socket head cap screw ISO 4762.

  • body and clamping piece made of deformationresistant aluminium
  • reflectionpoor, black anodized
  • with knurled or hexagon socket head cap screw
  • laminar clamping without consistant deformation of rail
  • adjustment remains stable during fixing

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
19.021.0040 RT 90-40-R

slide SYS 90, 40 mm, with knurled screw

19.022.0040 RT 90-40-M6

slide SYS 90, 40 mm, with hexagon socket head cap screw ISO 4762

19.021.0060 RT 90-60-R

slide SYS 90, 60 mm, with knurled screw

19.022.0060 RT 90-60-M6

slide SYS 90, 60 mm, with hexagon socket head cap screw ISO 4762

19.021.0080 RT 90-80-R

slide SYS 90, 80 mm, with knurled screws

19.022.0080 RT 90-80-M6

slide SYS 90, 80 mm, with hexagon socket head cap screws ISO 4762

19.021.0110 RT 90-110-R

slide SYS 90, 110 mm, with knurled screws

19.022.0110 RT 90-110-M6

slide SYS 90, 110 mm, with hexagon socket head cap screws ISO 4762
