SYS 65 Slides RT 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_rt_65.pdf

Description

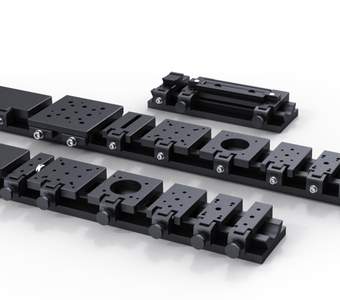

The RT 65 slides are equipped with tilting clamping pieces. The slides can be placed easily on the system rail
S 65 LL or on the S 65-4 4-side profile and fixed with the screw. The structure of the clamping pieces guarantees a high adhesion without consistant deformation of rail.

The slides RT 65 are available with knurled screw or with hexagon socket head cap screw ISO 4762.

  • body and clamping piece made of deformationresistant aluminium
  • reflection-poor, black anodized
  • with knurled or hexagon socket head cap screw
  • laminar clamping without consistant deformation of rail
  • adjustment remains stable during fixing

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
16.021.0020 RT 65-20-R

slide RT 65, 20 mm, with knurled screw

16.022.0020 RT 65-20-M4

slide RT 65, 20 mm, with hexagon socket head cap screw ISO 4762

16.031.0020 RT 65-20-R-Z

slide RT 65, 20 mm, for fine adjustment

16.021.2025 RT 65-25-R-H

raised slide RT 65, 25 mm wide, with knurled screw

16.022.2025 RT 65-25-M4-H

raised slide RT 65, 25 mm, with hexagon socket head cap screw ISO 4762

16.021.3028 RT 65-28-R

slide RT 65, 28 mm, with knurled screw

16.022.3028 RT 65-28-M4-M6

slide RT 65, 28 mm, with counterbore M6 and hexagon socket head cap screw ISO 4762

16.021.0035 RT 65-35-R

slide RT 65, 35 mm, with knurled screw

16.021.0040 RT 65-40-R

slide RT 65, 40 mm, with knurled screw

16.022.0040 RT 65-40-M4

slide RT 65, 40 mm, with hexagon socket head cap screw ISO 4762

16.021.3040 RT 65-40-R-LL

slide RT 65, 40 mm, with slotted hole and knurled screw

16.022.3040 RT 65-40-M4-LL

slide RT 65, 40 mm, with slotted hole for M6 and hexagon socket head cap screw ISO 4762

16.021.1059 RT 65-59-R

slide RT 65, 59 mm, with knurled screw

16.021.0065 RT 65-65-R

slide RT 65, 65 mm, with knurled screw

16.022.0065 RT 65-65-M4

slide RT 65, 65 mm, with hexagon socket head cap screw ISO 4762

16.021.1065 RT 65-65-R-D35

slide RT 65, 65 mm, with aperture ø 35 mm, with knurled screw

16.022.1065 RT 65-35-M4-D35

slide RT 65, 65 mm, with aperture ø 35 mm and hexagon socket head cap screw ISO 4762

16.024.0090 RT 65-4-90-M6

slide RT 65-4, 90 mm, with hexagon socket head cap screws ISO 4762

16.021.0200 RT 65-200-R

experiment platform 65, 200 mm long, with knurled screws

16.022.0200 RT 65-200-M4

experiment platform 65, 200 mm long, with hexagon socket head cap screws ISO 4762

16.091.4020 RT 65-20-R-S40

slide RT 65 with integrated system rail S 40, 20 mm long, with knurled screw

16.092.4020 RT 65-20-M4-S40

slide RT 65 with integrated system rail S 40, 20 mm long, with hexagon socket head cap screw ISO 4762
