SYS 40 Slides RT 40

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_rt_40.pdf

Description

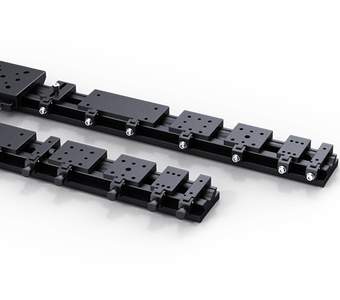

The RT 40 slides are equipped with tilting clamping pieces. The slides can be placed easily on the system rail S 40 LL or on the S40-4 4-side profile and fixed with the screw. The structure of the clamping pieces guarantees a high adhesion without consistant deformation of rail.

The RT 40 slides are available with knurled screw or with hexagon socket head cap screw ISO 4762.

  • body and clamping piece made of deformationresistant aluminium
  • reflection-poor, black anodized
  • with knurled or hexagon socket head cap screw
  • laminar clamping without consistant deformation of rail
  • adjustment remains stable during fixing

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
14.021.0010 RT 40-10-R

slide SYS 40, 10 mm, with knurled screw

14.022.0010 RT 40-10-M3

slide SYS 40, 10 mm wide, with hexagon socket head cap screw ISO 4762

14.021.0011 RT 40-10-R-WV 40

2 slides SYS 40, 10 mm, with knurled screw, for WV 40 and KSH(M) 40

14.031.0010 RT 40-10-R-Z

Reiter SYS 40, 10 mm wide, for fine adjustment

14.340.2000 RT 40-16-R-MVT 40

slide SYS 40, 16 mm, for MVT 40/MKT 40/KTM 40, with knurled screw

14.021.1095 RT 40-20-R-DRTM 40

slide SYS 40, 19.5 mm, with knurled screw and on the frontal threads for M4, for vertical mounting of DRT(M) 40

14.021.0020 RT 40-20-R

slide SYS 40, 20 mm, with knurled screw

14.022.0020 RT 40-20-M3

slide SYS 40, 20 mm, with hexagon socket head cap screw ISO 4762

14.021.3020 RT 40-20-R-LL

slide RT 40, 20 mm, with slotted hole for M3 and knurled screw

14.022.3020 RT 40-20-M3-LL

slide SYS 40, 20 mm, with hexagon socket head cap screw ISO 4762, with slotted hole for M3

14.021.0034 RT 40-34-R

slide SYS 40, 34 mm, with knurled screw

14.022.0034 RT 40-34-M3

slide SYS 40, 34 mm wide, with hexagon socket head cap screw ISO 4762

14.021.0040 RT-40-40-R

slide SYS 40, 40 mm, with knurled screw

14.022.0040 RT-40-40-M3

slide SYS 40, 40 mm wide, with hexagon socket head cap screw ISO 4762

14.024.0065 RT 40-4-65-M4

slide SYS 40, 65 mm wide, with hexagon socket head cap screws ISO 4762, for increased stability

14.021.0080 RT 40-80-R

slide SYS 40, 80 mm, with knurled screws

14.022.0080 RT 40-80-M3

slide SYS 40, 80 mm wide, with hexagon socket head cap screws ISO 4762
