SYS 40 Profiles S 40-4

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_s_40-4.pdf

Description

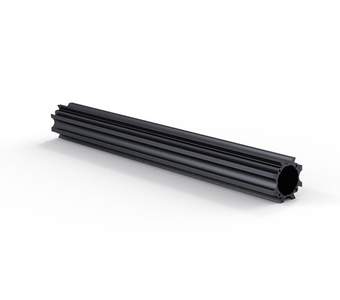

The 4-sided S 40-4 system profiles are the ideal choice for building 3D setups which are required to have a high dimensional stability. Their stiffness in torsion and bending even allows the building of cantilever constructions.

The four dovetail guides of the S 40-4 system profiles are fully compatible with those of the S 40 LL system rails. Thus, all SYS 40 equipment designed for the S 40 LL rails can be mounted on the S 40-4 system profiles as well.

The four guide rails of a profile are arranged in a way that allows four slides to be positioned around the profile independently of each other and without interference.

  • compatibility with system rails S 40 LL
  • ideal for building 3D setups
  • deformation-resistant aluminium
  • reflection-poor, black anodized

Options
- other lengths
- other anodized colours
- with tape scale
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
14.014.0150 S 40-4-150

4-side profile SYS 40, 150 mm long

14.014.0300 S 40-4-300

4-side profile SYS 40, 300 mm long

14.014.0500 S 40-4-500

4-side profile SYS 40, 500 mm long

14.014.1000 S 40-4-1000

4-side profile SYS 40, 1000 mm long

91.200.1000 KBM 100

adhesive tape scale
