SYS 25 Slides RT 25

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_rt_25.pdf

Description

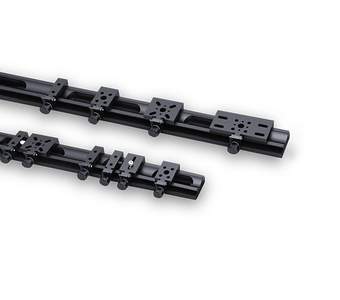

The RT 25 slides are used to mount assembling components on the system rail S 25 LL in order to provide the system height. The slides are equipped with the proven tilting clamping pieces. Thereby they can be placed easily also in existing setups on the system rails S 25 LL, too.

In order to fix the slides, a knurled or hexagon socket head cap screw is used. The form of the clamping pieces guarantees a high adhesion without consistant deformation of the rail.

Slides with lateral threaded hole for the slide with fine adjustment on request.

  • body and clamping piece made of deformationresistant aluminium
  • reflectionpoor, black anodized
  • with knurled or hexagon socket head cap screw
  • laminar clamping without consistant deformation of rail
  • adjustment remains stable during fixing

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
12.021.0008 RT 25-8-R

slide SYS 25, 8 mm, with knurled screw

12.022.0008 RT 25-8-M2,5

slide SYS 25, 8 mm, with hexagon socket head cap screw ISO 4762

12.031.0008 RT 25-8-R-Z

slide SYS 25 with knurled screw, 8 mm, for fine adjustment

12.021.0009 RT 25-9-ZM

two slides SYS 25, 9 mm, to mount KSH(M) 25 on S 25 LL, with knurled screws

12.021.0015 RT 25-15-R

slide SYS 25, 15 mm, with knurled screw

12.022.0015 RT 25-15-M2,5

slide RT 25, 15 mm, with hexagon socket head cap screw

12.021.3015 RT 25-15-R-LL

slide SYS 25 with knurled screw, 15 mm, with slotted hole for M2.5

12.022.3015 RT 25-15-M2,5-LL

slide SYS 25, with hexagon socket head cap screw ISO 4762, with slotted hole for M2.5

12.021.0025 RT 25-25-R

slide SYS 25, 25 mm, with knurled screw

12.022.0025 RT 25-25-M2,5

slide SYS 25, 25 mm, with hexagon socket head cap screw ISO 4762

12.021.0045 RT 25-45-R

slide SYS 25, with knurled screw, 45 mm

12.022.0045 RT 25-45-M2,5

slide SYS 25, with hexagon socket head cap screw ISO 4762, 45 mm
