SYS 25-SYS 40-Adapterplatte

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_adp-s40-s25-10.pdf

Description

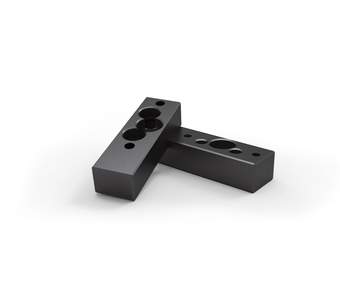

The adapter plates ADP-S40-S25-10 are used to fix SYS 25 components on RT 40 slides as well as to adapt
- by using two plates - the optical axes for a whole SYS 25 rail-slide-component combination to the beam height of the SYS 40.

The adapter plate ADP-S40-S25-10 is mounted between slide and optical component with the M2.5 screws which are part of delivery.

In order to adapt the height of a whole rails-slide-component, the rail is put on two adapter plates and fixed though the big hole in the plates with the M6 screw on the optical table.

The needed screws are part of delivery.

  • deformation-resistant aluminium
  • reflection poor, black anodized
  • to adapt the optical axes
  • ways of installing
    - on RT 40 - on optical tables

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
14.900.0002 ADP-S40-S25-10

for SYS 25 components in SYS 40

14.021.0010 RT 40-10-R

slide SYS 40, 10 mm, with knurled screw

14.022.0010 RT 40-10-M3

slide SYS 40, 10 mm wide, with hexagon socket head cap screw ISO 4762

S 25 LL

SYS 25 System Rails with slotted holes - s. product info S 25 LL
