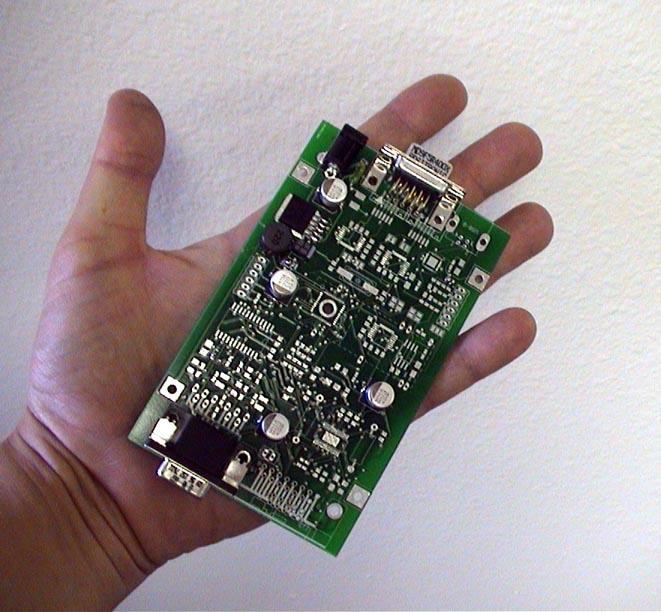

SSP-51 Stepper Motor Controller medium size
Available In Stock

Stepper Motor Controller. USB, networkable and wireless available.

Mass:  200 grams
Dimensions:  4.5x3 inch
DATASHEET SSP-51DS.pdf

Images


Description

Stepper Motor Controller for one bipolar stepper motor replaces any controller. Encoder feedback option available with absolute position. The PC Interface can be RS232, RS485, USB, Ethernet or wireless. Up to 99 boards may share same PC host interface. 2 ch general purpose 10-bit A/D input port for reading 0 to 5V. Home reference switch with indexing for repeatable positioning. End of travel switches. Full, 1/2, 1/4, 1/8 and 1/16 or wave step modes up to 72,000 microsteps per 360 degrees. Simple Terminal type programming. DEMO program. LabView drivers. Recommended mechanics: OWIS stages and actuators.

Files

File NameSize
SSP-51DS.pdf497.77KB
STEPPER+QUICK+START.doc363KB
Stepper_DEMO.zip521.35KB
USC-22UM.doc670.5KB
