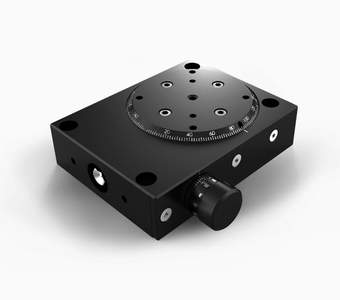

Rotary Stages DT 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_dt_65.pdf

Description

The DT 65 rotary stages provide unlimited angle of rotation at resolutions of less than one angular minute. They are suitable for both horizontal and vertical rotational axes.

The precision ball bearings and the worm gear are preloaded.

The DT 65 rotary stages are for use with SYS 65 and also available with different motorization as DMT 65.

  • for use with SYS 65
  • deformation-resistant aluminium, black anodized
  • precision bearings
  • nearly backlash-free worm gear (gear ratio 180:1)
  • rotary table with
    - M4 central thread
    - M6 central thread
    - ø 25 mm retainer and aperture
    - ø 35 mm retainer and ø 28.5 mm aperture
  • ways of installing
    - on slide

Option
- vacuum-prepared versions available

Art. Nr. Type Title
33.065.0450 DT 65-M4

rotary stages, rotary table without aperture, with M4 thread

33.065.0650 DT 65-M6

rotary stages, rotary table without aperture, with M6 thread

33.065.2550 DT 65-D25

rotary stages, rotary table with ø 25 mm retainer and aperture

33.065.3550 DT 65-D35

rotary stages, rotary table with ø 35 mm retainer, ø 28.5 mm aperture

16.021.0020 RT 65-20-R

slide RT 65, 20 mm, with knurled screw
