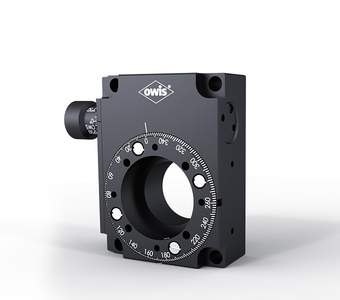

Rotary Stages DT 40

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_dt_40.pdf

Description

The rotary stages DT 40 provide unlimited angle of rotation. The resolution for manual adjustment is about 1/100 of a degree. They are equipped with a precision worm gear drive and a zero-backlash preloaded rolling bearing.

The DT 40 are suitable primarily for rotating optical elements in SYS 40.

Beside the manual version, the DMT 40 are also available with gear motor (DC servo or 2-phase step motor).

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • precision bearings
  • nearly zero-backlash worm gear (reduction ratio 90:1)
  • rotary table with ø 25 mm retainer and ø 20 mm aperture
  • ways of installing
    - on slide
    - on pin

Option
- vacuum-prepared versions available

Art. Nr. Type Title
33.040.2550 DT 40-D25

rotary stages DT 40, rotary table with ø 25 mm retainer and ø 20 mm aperture

14.021.0020 RT 40-20-R

slide SYS 40, 20 mm, with knurled screw

  STF 15

pin 15 - s. product information STF 15
