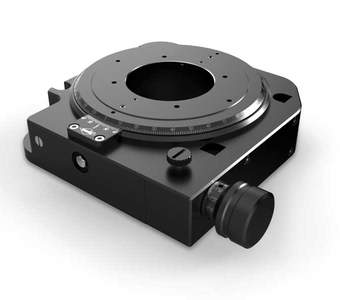

Rotary Stages DT 130

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_dt_130.pdf

Description

The DT 130 rotary stages have a preloaded worm gear drive with a gear ratio of 180:1.

In spite of their compact external dimensions, they can bear large loads in axial and radial directions.

These rotary stages has a large aperture of 56 mm.

The DT 130 rotary stages are also available with different motorization as DMT 130.

  • for use with SYS 90
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • precision bearings
  • with clamping
  • preloaded worm gear (gear ratio 180:1)
  • rotary table with retainer and aperture of ø 56 mm
  • ways of installing
    – on optical tables with mounting plate MP 190-150-A
    – on slide

Option
- vacuum-prepared versions available

Art. Nr. Type Title
33.130.0056 DT 130-D56

rotary stage, rotary table with ø 56 mm retainer and aperture

19.021.0040 RT 90-40-R

slide SYS 90, 40 mm, with knurled screw
