Rotary Stages DT 100

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_dt_100.pdf

Description

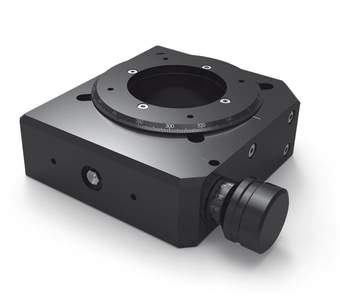

The DT 100 rotary stages have a preloaded worm gear drive with a gear ratio of 180:1.

In spite of their compact external dimensions, they can bear large loads both in axial and radial direction.

These rotary stages have a large aperture of 53 mm.

Beside the manual version, the DMT 100 are also available with gear motor (DC servo or 2-phase step motor).

  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • precision angular-contact ball bearings
  • with clamping
  • nearly backlash-free worm gear (gear ratio 180:1)
  • rotary table with retainer and aperture of ø 53 mm
  • ways of installing
    – on optical tables and measuring as well as translation stages with MP-D(M)T 100-WV 100

Option
- vacuum-prepared versions available

Art. Nr. Type Title
33.100.0050 DT 100-D50

rotary stage DT 100, rotary table with ø 53 mm retainer and aperture

33.085.9000 ADP-DV85-DT100-M4

adapter plates for mounting MT 45, MT 60

and VT 45 with M4 threaded hole

33.085.9002 ADP-DV85-DT100-M6

adapter plates for mounting MT 45, MT 60

and VT 45, with M6 threaded hole
