Rotary Stages DRTM 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_drtm_65.pdf

Description

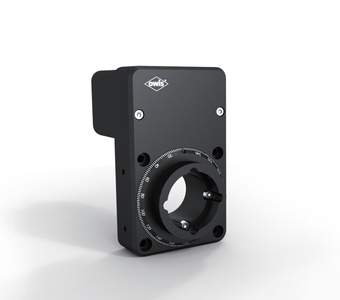

The belt driven rotary stage DRTM 65 allows a much higher rotational speed in comparison to the DMT 65, but with less resolution.

They are suitable for both horizontal and vertical rotational axes. The precision ball bearings and the proloaded belt drive allow nealy backlash-free positioning. The DRTM 65 are for use with SYS 65. They are available with two different motorization and have an integrated reference switch.

All aluminium parts have a top quality black anodized protective coating.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • precision angular-contact ball bearings
  • synchronous tooth belt drive
  • rotary table with aperture oder threaded hold
  • Hall-effect reference switch
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
44.065.046C DRTM 65-DM4-HSM

rotary stage with M4 center hole in rotary table, 2-phase step motor and Hall-effect reference switch

44.065.066C DRTM 65-DM6-HSM

rotary stage with M6 center hole in rotary table, 2-phase step motor and Hall-effect reference switch

44.065.256C DRTM 65-D25-HSM

rotary stage withø 25 mm aperture in rotary table, 2-phase step motor and Hall-effect reference switch

44.065.356C DRTM 65-D35-HSM

rotary stage, with ø 35 mm mount and ø 28 mm aperture in rotary table, 2-phase step motor and Hall-effect reference switch

44.065.04GE DRTM 65-DM4-HiDS

rotary stage with M4 center hole in rotary table, DC servo motor with encoder and Hall-effect reference switch

44.065.06GE DRTM 65-DM6-HiDS

rotary stage with M6 center hole in rotary table, DC servo motor with encoder and Hall-effect reference switch

44.065.25GE DRTM 65-D25-HiDS

rotary stage with ø 25 mm aperture in rotary table, DC servo motor with encoder and Hall-effect reference switch

44.065.35GE DRTM 65-D35-HiDS

rotary stage with ø 35 mm mount and ø 28 mm aperture in rotary table, DC servo motor with encoder and Hall-effect reference switch

16.021.0020 RT 65-20-R

slide SYS 65, 20 mm, with knurled screw

16.022.0020 RT 65-20-M4

slide RT 65, 20 mm, with hexagon socket head cap screw

G

mounts for slack optics - s. product info G

EINS, FASE 40

reduction and fibre adapters - s. product info EINSR FASE 40

STF 15

pin 15 - s. product information STF 15
